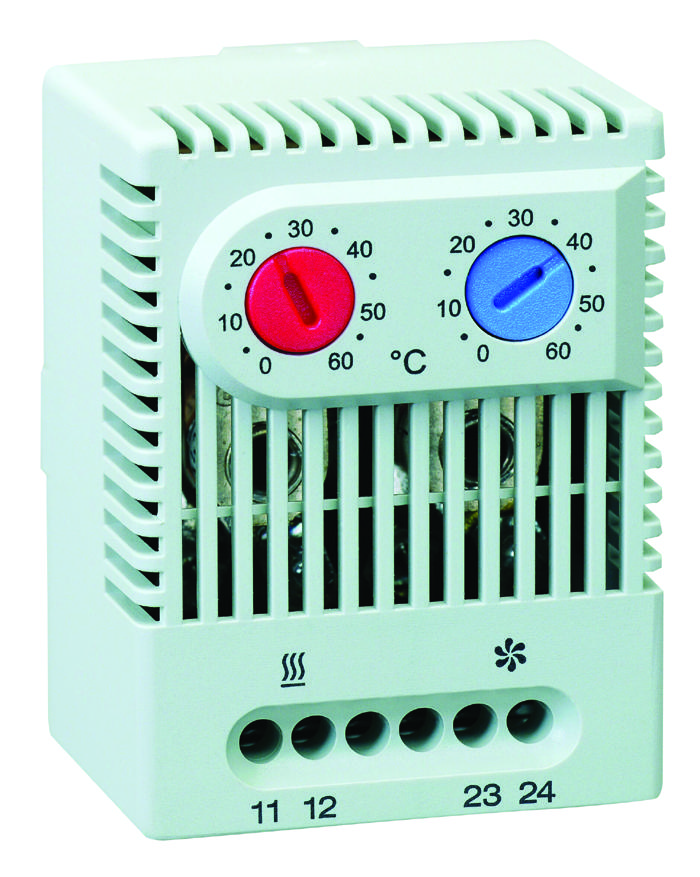

STEGO 01172001 Dual Thermostat
The dual thermostat controller features a thermostatic bi-metal sensor element housed in a durable plastic casing. It includes both normally closed and normally open contacts, with the NC contact opening upon temperature rise for controlling heaters, and the NO contact closing at higher temperatures for regulating fans or switching signals. Mountable on a 35mm DIN rail, it meets EN 60715 standards and has an IP20 rating for protection. With a switching capacity of 10A at 250VAC, it is suitable for sensing, instrumentation, and signal processing applications, offering wide adjustable temperature ranges and easy terminal access.
STEGO 01172001 Dual Thermostat Specifications:
- Sensor Element: Bi-metal
- Operating Temperature Range: -49 to 158°F (-45 to 70°C)
- Switching Capacity: NC: 10A resistive/2A inductive at 250 VAC, NO: 5A resistive/2A inductive at 250 VAC
- Dimensions (H x W x D): 2.6 x 2.0 x 1.8 inches (67 x 50 x 46 mm)
- Housing: Plastic, UL 94 V-0
- Protection Class: IP20
- Mounting: 35mm DIN rail (EN 50022)
- Connection Terminals: 4-pole terminal for AWG 14 (2.5 mm²)
- Weight: 80 g
- Compliance: UL, CSA, EN61000-3-2/A14, EN61000-3-3
- Temperature Adjustment Range: 32-140°F (0-60°C), with switching difference of approximately 7K (±4K tolerance)
Buy the Buy Stego Dual Thermostat Part Number 01172001 Online
Purchase the Stego dual thermostat online for efficient temperature regulation with bi-metal sensors, DIN rail mounting, and high switching capacity. This reliable device offers adjustable temperature ranges, UL and CSA approvals, and IP20 protection, making it ideal for controlling heaters, fans, and signal devices. Easy terminal access, durable plastic housing, and compliance with safety standards ensure seamless integration into your automation and instrumentation setups. Get yours today for precise and dependable temperature management.
Buy Stego 01172001 dual thermostat now and experience reliable temperature control for heating, cooling, and signal switching tasks.
