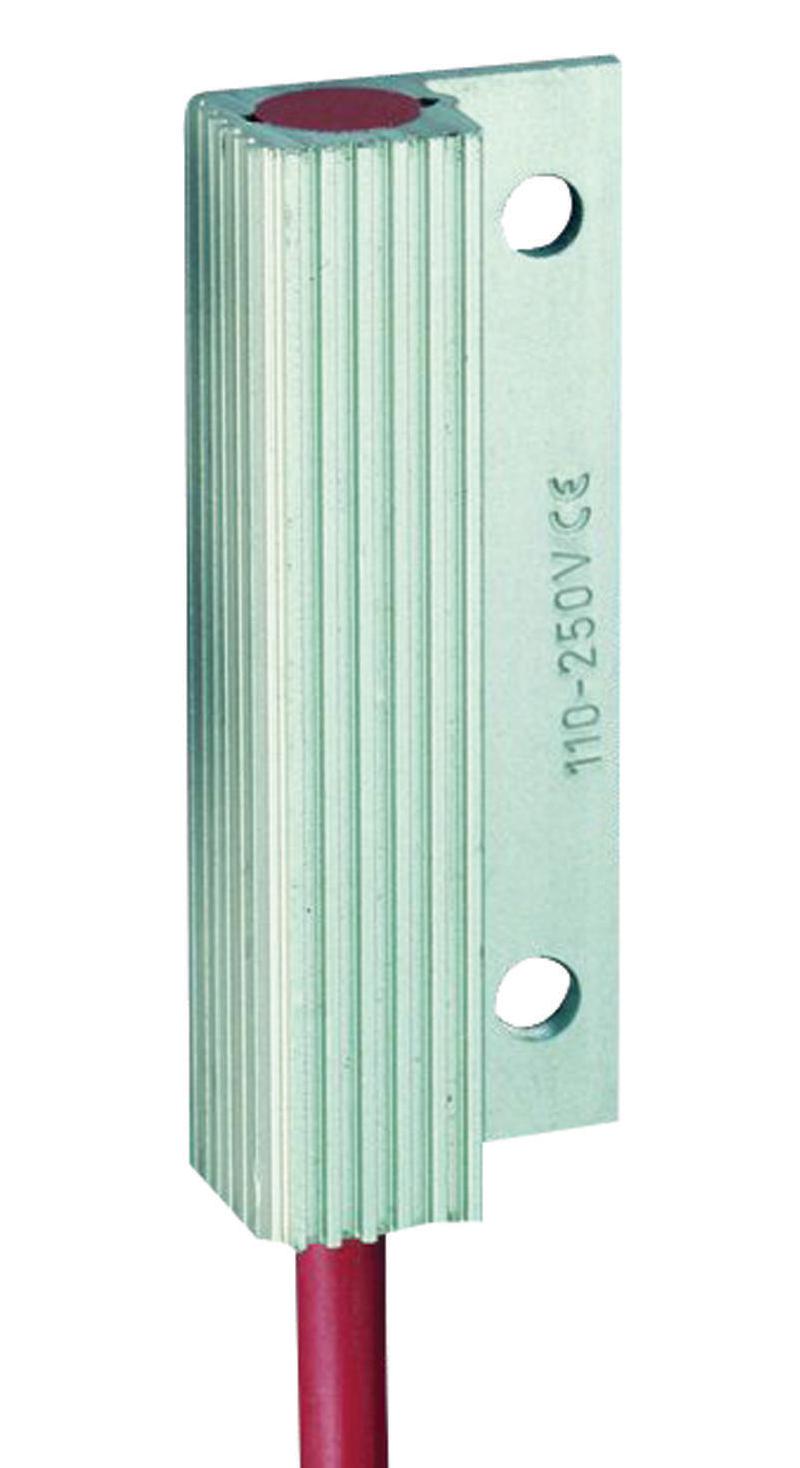

STEGO 01610001 Small PTC Heater
The STEGO RC 016 small PTC heater is a self-regulating heating element ideal for applications requiring precise temperature control in compact spaces. Designed to prevent condensation and maintain minimum operating temperatures, it finds use in camera housings, actuators, valve and pump controls, telecom receivers/transmitters, control boxes, and micro base stations. The heater's PTC construction provides inherent safety and energy efficiency through its self-limiting properties. Available in various power ratings and voltage options, the RC 016 is a reliable solution for maintaining optimal operating conditions in a wide range of industrial and commercial applications.
STEGO 01610001 Small PTC Heater Specifications:
- Max Current (68°F/1): 3.0A
- Power at 68°F (1): 13W
- Max Current (inrush): N/A
- Power at Temperature: N/A
- Surface Temperature: approx. 340°F (170°C)
- Weight: 1.4 oz. (40 g)
- Operating Voltage: AC/DC 110 - 250 V
- Dielectric Strength: 3500 VAC 1 min
- Heating Body: Aluminum, anodized
- Heating Element: PTC, self-regulating and temperature limiting
- Insulation: PTFE / Kapton
- Connection: See illustration
- Mounting: Screw mounting
- Protection Class: II (double insulated)
- Protection Type: IP 32
- Agency Approvals: UL, VDE
