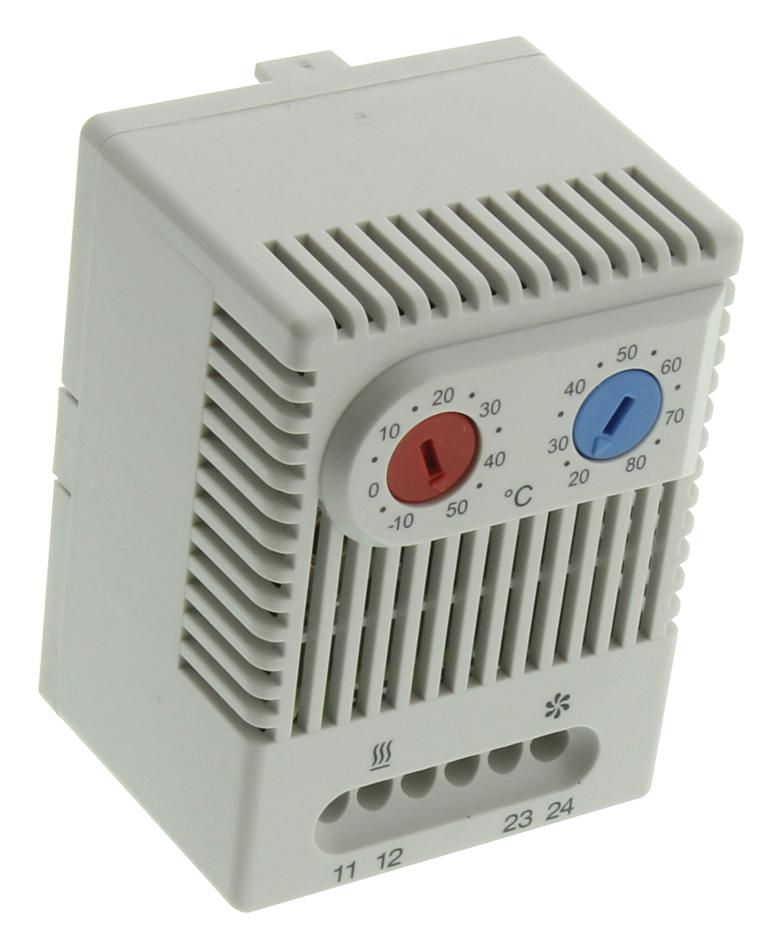

STEGO 01175000 Dual Thermostat
The dual thermostat combines normally open and normally closed contacts in a compact design, ideal for controlling heating, cooling, and signaling devices. The NC contact opens at a set temperature to regulate heaters, while the NO contact closes to activate fans and heat exchangers. Equipped with adjustable temperature settings, high switching capacity, and accessible terminals, it is suitable for sensing and instrumentation applications. The thermostat features a UL 94V-0 plastic housing, DIN rail mounting, and operates reliably within -45°C to +80°C. Its robust design ensures over 100,000 cycles, making it a durable choice for industrial automation.
STEGO 01175000 Dual Thermostat Specifications:
- Contact type: snap-action contact
- Max. switching capacity: NC 10 A resistive / 2 inductive @ AC250 V, NO 5 A resistive / 2 inductive @ AC250 V, 18 A resistive / 2 A inductive @ AC120 V
- Switching difference: 126 °F ± 7 °F (7 K + 4 K)
- Sensor element: thermostatic bimetal
- Housing: plastic, UL 94V-0, light grey
- Mounting: DIN rail, EN 60715, vertical
- Operating temperature: -45 °C to +80 °C ( -49 °F to + 176 °F)
- Protection type: IP20
- Dimensions: 2.6 x 2.0 x 1.8 inches (67 x 50 x 46 mm)
- Weight: approximately 90g
- Clamping torque: 0.5 Nm
- Connection: 4-pole terminal, suitable for AWG 14-16 wires
- Certifications: UL, CSA, VDE, EAC
Buy the Stego Series Dual Thermostat: 01175000
Order the Stego dual thermostat online today to ensure precise temperature regulation for your industrial equipment. This reliable device features adjustable settings, a durable UL 94V-0 plastic body, and DIN rail mounting, making installation straightforward. Capable of switching high currents with over 100,000 cycles, it is suitable for controlling heaters, fans, heat exchangers, and electronic enclosures. Enhance your automation system by purchasing this high-quality thermostat online and enjoy prompt delivery and excellent customer support.
Buy Stego 01175000 dual thermostat now and experience reliable temperature control for heating, fans, and signaling devices.
Frequently Asked Questions
Where can I buy STEGO 01175000?
You can click on the BUY or RFQ button to purchase 01175000 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 01175000?
You can download the 01175000 datasheet or visit the STEGO website for support.
Who is the manufacturer of 01175000?
STEGO
