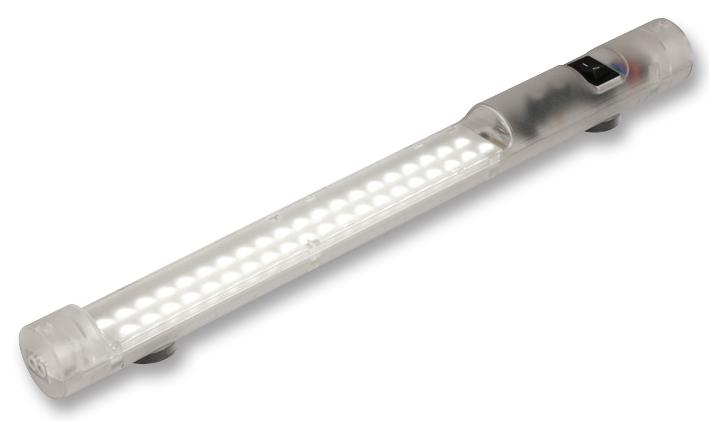

STEGO 02540001 LED Light Bar
This LED light bar features a white illumination with a transparent plastic housing, ideal for panel and enclosure lighting in spaces where compactness is essential. Utilizing energy-efficient LED technology, it offers a long lifespan. The unit includes powerful non-slip rubberized magnets for easy positioning on steel surfaces and comes with screw mounting options. It supports daisy chaining of up to 10 units through snap-locking input and output plugs. The light bar has an IP20 protection rating, a 120° beam angle, and an integrated power supply, making it suitable for various LED lighting applications.
STEGO 02540001 LED Light Bar Specifications:
- Power consumption: max. 5 W (~75 W incandescent bulb equivalent)
- Luminosity: 290 Lumens
- Lamp type: LED, 120°, electronic ballast
- Service life: 60,000 hours
- Housing: plastic, UL 94V-0, transparent, light grey
- Mounting options: magnet mount or M5 screw mount
- Protection class: II (double insulated)
- Operating temperature: -20 to +60 °C (0 to +140 °F)
- Dimensions: 13.8 x 1.3 x 1.3 inches (350 x 34 x 32 mm)
- Weight: approximately 0.9 lbs (400 g)
- Connection: 2-pole plug with snap lock, max. AWG 16
- Number of units daisy-chained: up to 10
Buy the Buy STEGO LED Light Bar Part Number 02540001 Online
Enhance your enclosure lighting with the energy-efficient LED Light Bar. Featuring long lifespan, compact design, magnetic and screw mounting options, and easy daisy chaining, this IP20-rated light offers reliable performance. Its 120° beam angle provides ample illumination while conserving space. The integrated power supply simplifies installation, making it ideal for panel and enclosure applications. Purchase online today to enjoy high-quality, long-lasting LED lighting with quick, secure snaps for effortless setup and dedicated compatibility for various industrial spaces.
Buy STEGO LED Light Bar 02540001 now and experience reliable, long-lasting, energy-efficient illumination for enclosures and panel lighting.
