A Premier B2B Part Search
STEGO 01230000 Hygrotherm Sensor

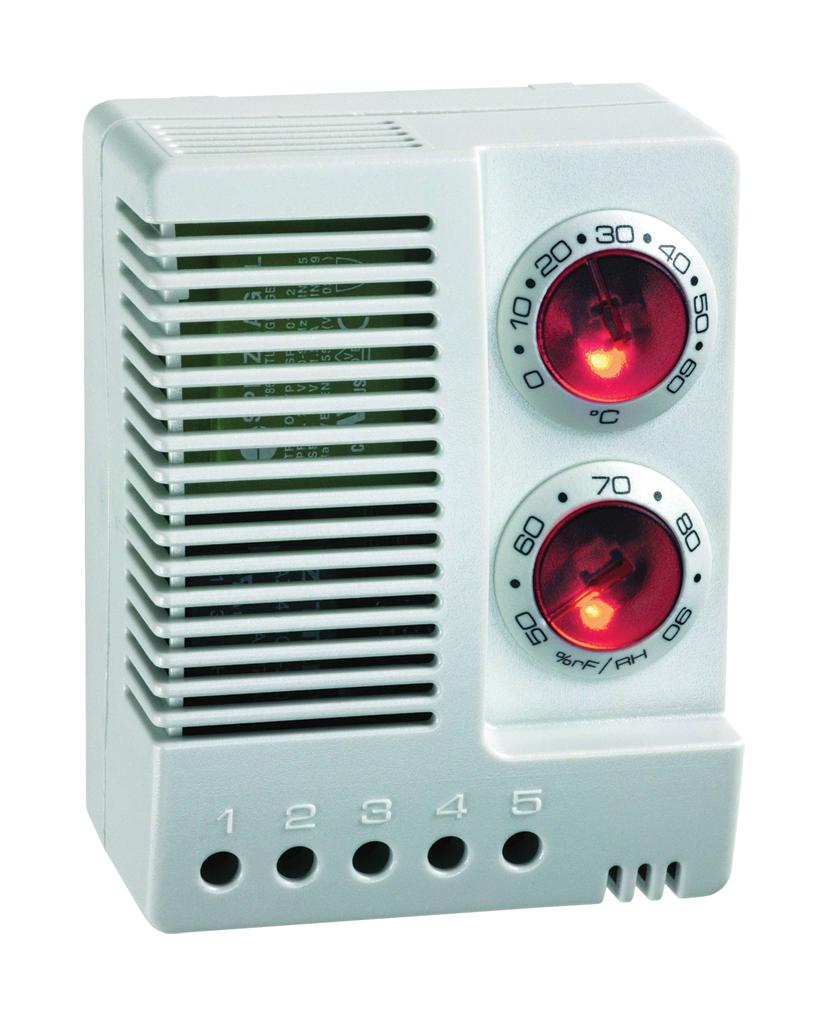

The electronic hygrotherm sensor features a light grey plastic housing and is designed to monitor ambient temperature and relative humidity within an enclosure. It activates or deactivates connected devices based on set temperature or humidity thresholds, using specific contact configurations. An integrated LED indicator on each adjustment knob shows the active status. The device offers IP20 protection rating, UL94V-0 flammability rating, and is suitable for temperature control down to -40°C. It supports a wide voltage range, has a high switching capacity, and is DIN rail mountable, making it ideal for industrial applications.
STEGO 01230000 Hygrotherm Sensor Specifications:
- Contact type change-over relay
- Switching difference (temperature): 2K (+1K tolerance) at +25°C
- Switching difference (humidity): 4 %RH (+1 % tolerance) at +25°C
- Reaction time (humidity): approx. 5 sec.
- Max. switching capacity: 10 A resistive / 1.6 A inductive @ AC 240 V
- Max. inrush current: 30 A for 10 sec.
- Housing material: UL 94V-0 plastic, light grey
- Dimensions: 3.0 x 24 x 1.7 inches (77 x 60 x 43 mm)
- Weight: approx. 3.5 oz (100 g)
- Operating/Storage temperature: -40°C to +60°C (-40°F to +140°F)
- Operating/Storage humidity: Max. 95 %RH (non-condensing)
- Protection type: IP20
- Approvals: UL, VDE, GOST-R
- Mounting: DIN rail, vertical
- Wiring: 5 pole terminal, with wire end ferrules recommended for stranded wires
Buy the Stego Series Hygrotherm Sensor: 01230000
Enhance your industrial control system with the Stego Hygrotherm Sensor. This reliable device monitors ambient temperature and humidity within enclosures, activating connected devices based on user-defined thresholds. Featuring a durable UL 94V-0 plastic housing and DIN rail mounting, it offers high switching capacity and integrated LED indicators for easy status monitoring. Suitable for temperatures from -40°C to +60°C, it ensures optimal climate management in varied environments. Ideal for automation and control applications requiring precise environmental regulation.
Buy Stego 01230000 hygrotherm sensor now and experience reliable temperature and humidity monitoring in industrial environments.
Frequently Asked Questions
Where can I buy STEGO 01230000?
You can click on the BUY or RFQ button to purchase 01230000 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 01230000?
You can download the 01230000 datasheet or visit the STEGO website for support.
Who is the manufacturer of 01230000?
STEGO
