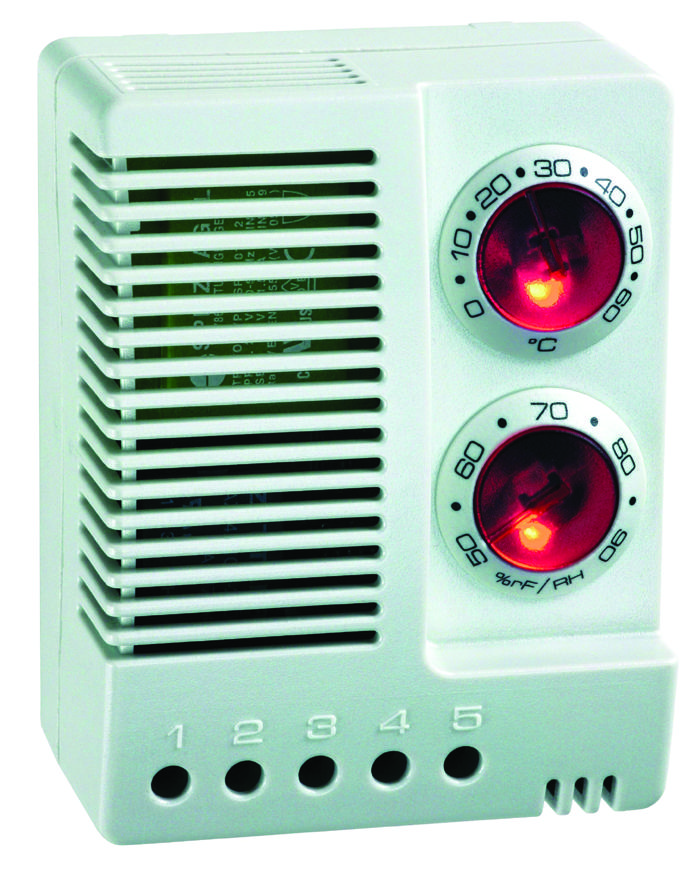

STEGO 01230900 Electronic Hygrometer Thermometer
The 01230.9-00 is a DIN rail-mounted electronic hygrometer and thermometer designed to monitor ambient temperature and relative humidity within an enclosure. It features configurable contact settings to control connected devices based on specific temperature or humidity thresholds. An integrated LED indicator lights up when a function is active. This device includes a change-over relay contact, an external sensor, and a light-gray plastic housing. It is rated UL94V-0 for flammability, offers IP20 protection, and supports a wide voltage range for efficient temperature and humidity regulation. The unit operates effectively at temperatures as low as -40°C and has a high switching capacity suitable for various sensing and instrumentation applications.
STEGO 01230900 Electronic Hygrometer Thermometer Specifications:
- Sensor Type: Electronic hygrometer and thermometer
- Mounting: DIN rail, vertical position
- Housing Material: Light gray UL 94V-0 plastic
- Dimensions: 3.0 x 2.4 x 1.7 inches (77 x 60 x 43 mm)
- Weight: approximately 100 g
- Temperature Range: -40°C to +60°C (-40°F to +140°F)
- Humidity Range: 50-90% RH
- Switching difference: 2K (temperature), 4% RH (humidity)
- Relay Contact: Change-over, 10 A resistive / 1.6 A inductive @ AC 240 V
- Reaction Time: Humidity approx. 5 sec
- Protection Class: IP20
- Service Life: Over 15,000 cycles (VDE), over 30,000 cycles (UL)
- Operating/Storage Temperature: -40°C to +60°C
- Operating Humidity: Max 95% RH (non-condensing)
- Power Supply: AC 90-265 V or DC 20-60 V
- Approval: UL, VDE, GOST-R
Buy the Buy Stego Electronic Hygrometer Thermometer Part Number 01230900 Online
Purchase the Stego 01230900 electronic hygrometer and thermometer online now to optimize your environmental monitoring. This DIN rail-mounted device accurately measures temperature from -40°C to +60°C and humidity levels between 50-90%, providing reliable relay control for connected equipment. Its rugged light-gray plastic housing, UL94V-0 rating, and IP20 protection make it suitable for industrial environments. Easy to install with a vertical DIN rail mount, it offers high switching capacity, quick response time, and broad voltage compatibility to maintain optimal enclosure conditions efficiently.
Buy Stego 01230900 electronic hygrometer and thermometer now and ensure precise temperature and humidity control in your enclosure with reliable relay switching.
