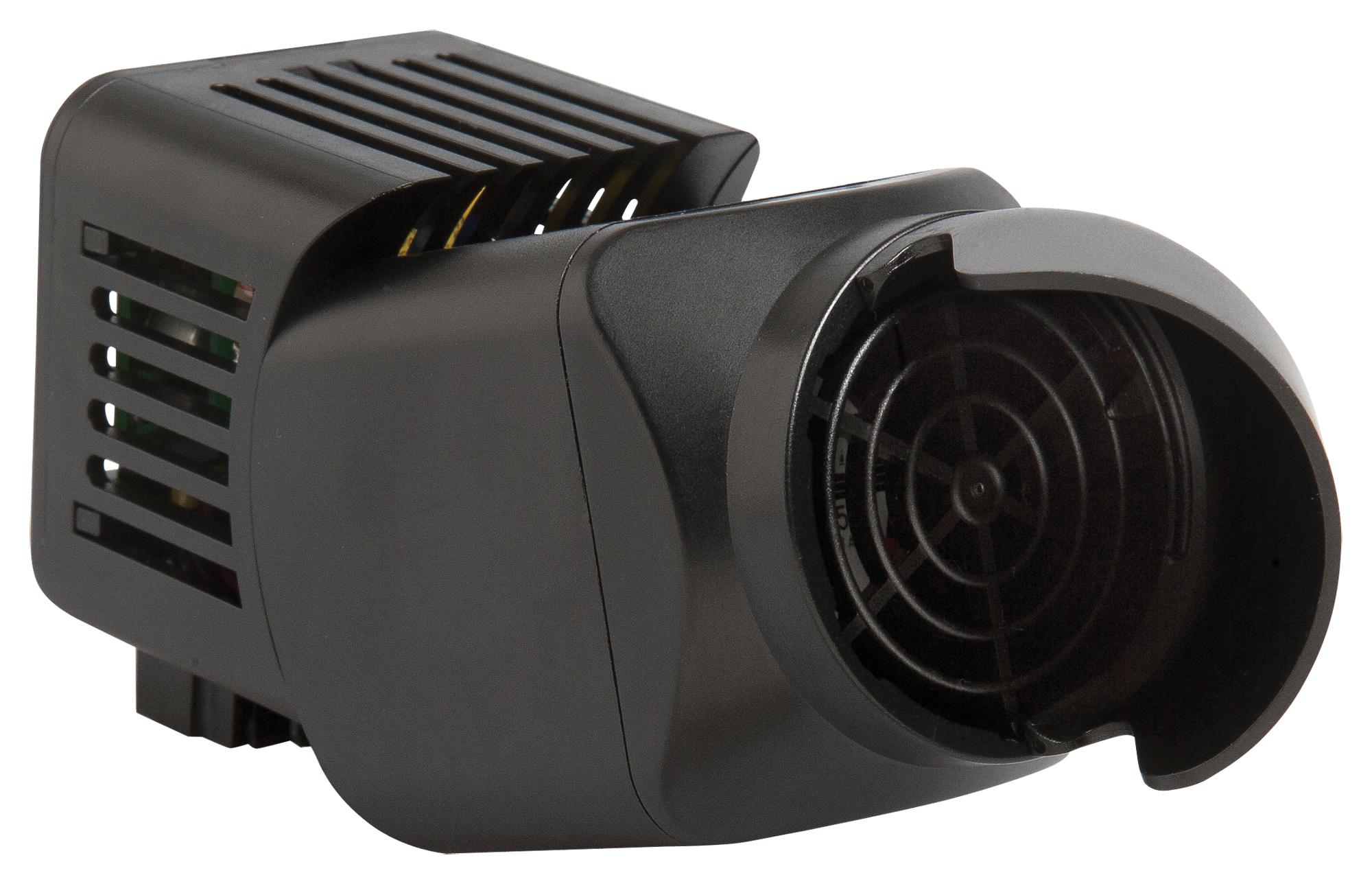

STEGO 01925100 Industrial Cooling Fan
The STEGOJET is a compact, powerful built-in fan designed for precise cooling of heat sources. It prevents heat pockets with a flexible airflow that can be directed in multiple angles, offering maximum rotation range. The fan features a dual clip system for easy mounting on DIN rails and a movable housing hinge with a 40° angle. It has an axial ball bearing, operates at 27.6 m³/h airflow, and offers a service life of 40,000 hours at +60°C. It is suitable for various mounting positions and environments with temperature ranges from -30°C to +70°C and humidity up to 90%. The device complies with UL94 V-0 standards and is available in clip and screw fixing options.
STEGO 01925100 Industrial Cooling Fan Specifications:
- Air flow: 27.6 m³/h, free flow
- Service life: 40,000 hours at +60°C, 90% RH
- Power consumption: Not specified
- Connection: 2-pole dual pressure clamp for 2.5 mm² wire, stranded wire with ferrule, 15 mm²
- Mounting: Clip on DIN rail or screw fixing with torque 2 Nm, washers required
- Dimensions: 132.4 x 60 mm
- Weight: Approx. 0.24 g
- Operating/Storage temperature: -30 to +70°C (+14 to +158°F) / -30 to +70°C
- Operating/Storage humidity: Max 90% RH (non-condensing)
- Protection type: UL94 V-0 plastic
- Range of rotation: Air duct can be rotated stepwise in 60°, housing hinge in 40°
- Fitting position: Multiple options including DIN rail and screw mounting
Buy the Exide U+2013 Reliable Cooling Fan for Industrial Applications
Purchase the Exide cooling fan online today to ensure your electronic and industrial systems remain optimally cooled. This compact, durable fan offers flexible airflow direction, easy mounting on DIN rails or via screws, and a long service life of 40,000 hours at high temperatures. Its versatile design makes it suitable for various applications, maintaining performance in harsh environments with high humidity and temperature ranges. Enjoy quick delivery and expert support by buying directly online.
Order your Exide Series01925.0-00 cooling fan today and enhance your electronic or industrial cooling solutions with dependable airflow and versatile mounting.
