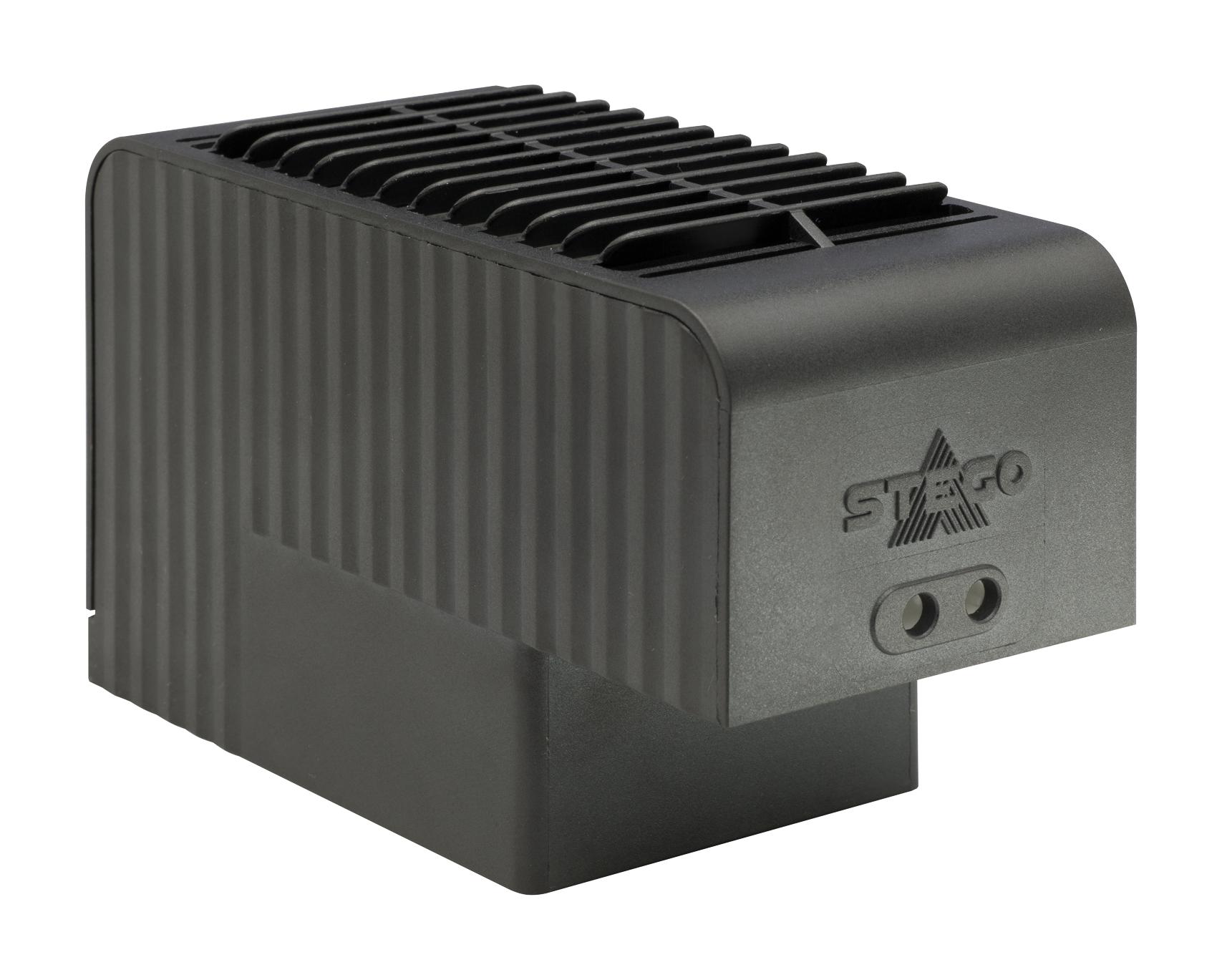

STEGO 03209000 PTC Fan Heater
The compact PTC fan heater prevents condensation formation and ensures evenly distributed interior air temperature within enclosures. Made with a durable plastic housing featuring double insulation, it provides contact protection against current-carrying parts. The heater includes an integrated PTC heating element with overheat protection, and is designed for DIN rail or screw mounting. It operates reliably in temperatures ranging from -40°C to +60°C, with an airflow of 37 CFM. Options include models with or without an adjustable thermostat, suitable for industrial control, electrical enclosures, and HVAC applications.
STEGO 03209000 PTC Fan Heater Specifications:
- Power: 1000 W
- Housing: Plastic, UL 94V-0, black
- Mounting: DIN rail or screw mount
- Airflow: 37 CFM (63 m³/h)
- Surface temperature: Max 176°F (80°C)
- Ambient temperature range: -40°C to +60°C
- Protection class: II (double insulated)
- Overheat protection: Built-in PTC resistor, temperature limiter at 125°C
- Dimensions: 150.5 x 88 x 66 mm
- Weight: Approximately 650 g
- Certification: UL, VDE, GOST-R
- Connection: IEC320 C18 male power insert (cables sold separately)
- Humidity: Max 90% RH (non-condensing)
- Operating voltage options: 100-120 V / 220-240 V, 50/60 Hz
Buy the Buy Stego USA PTC Fan Heater Part Number 03209000 Online
Purchase the Stego USA PTC Fan Heater with part number 03209000 online today. This compact device ensures even heat distribution and condensation prevention within electrical enclosures. Easy to install with DIN rail or screw mounting options, it features a durable plastic housing, integrated overheat protection, and reliable operation across a wide temperature range. Designed for industrial environments, it helps maintain optimal internal temperatures, protecting sensitive components and extending equipment lifespan. Order now for fast, secure delivery and improve your enclosure climate control effortlessly.
Buy Stego USA 03209000 PTC Fan Heater with integrated thermostat now and experience reliable condensation prevention for electrical enclosures.
Frequently Asked Questions
Where can I buy STEGO 03209000?
You can click on the BUY or RFQ button to purchase 03209000 from an authorized STEGO distributor.
How do I troubleshoot issues or seek technical support for part 03209000?
You can download the 03209000 datasheet or visit the STEGO website for support.
Who is the manufacturer of 03209000?
STEGO
