STMICROELECTRONICS 15KE24CA Transient Voltage Suppressor
The 1.5KE24CA is a high-performance transient voltage suppression diode designed to protect sensitive electronic devices from overvoltage transients. It has a peak pulse power dissipation of 1500 W (10/1000 ps), and provides fast, reliable clamping of voltage surges. Suitable for use in telecommunication, power supplies, and data lines, this bidirectional diode ensures high robustness and safety margins. Its compact epoxy package meets UL94V-0 flame rating, with easy installation and excellent thermal stability for demanding overvoltage protection applications.
STMICROELECTRONICS 15KE24CA Transient Voltage Suppressor Specifications:
- Peak pulse power: 1500 W (10/1000 ps)
- Breakdown voltage range: 6.8 V to 440 V
- Maximum operating junction temperature: 175 °C
- Storage temperature range: -65 °C to +175 °C
- Package: DO-201 epoxy, lead-free, UL94V-0 flammability
- Thermal resistance junction to ambient: 75 °C/W
- Peak forward current: 200 A for unidirectional types
- Lead temperature for soldering: 230 °C for 10 seconds
- Capacitance (typical): 9500 pF at 1 MHz and 5 V
- Dimensions: a 85-95 mm, B 25.4 mm, C 48 mm

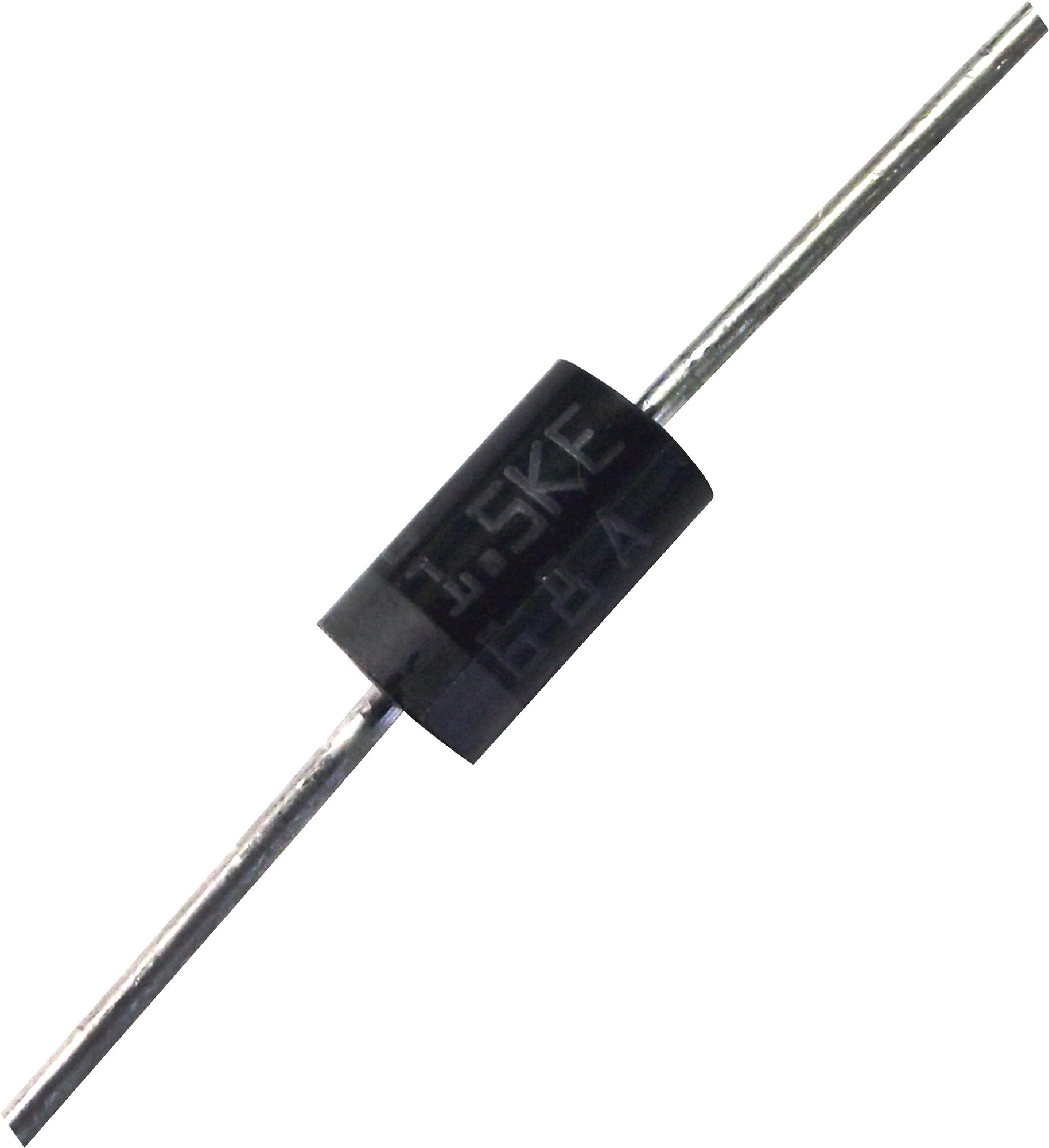

Buy the STMicroelectronics Series 1.5KE Overvoltage Protection Diode: 1.5KE24CA
Experience reliable overvoltage protection with the STMicroelectronics Series 1.5KE24CA transient voltage suppression diode. With a peak pulse power of 1500 W and robust epoxy packaging, it is ideal for safeguarding sensitive electronics, telecom equipment, and power systems. Its fast response time and bidirectional design ensure quick clamp action during surges, preventing damage and ensuring system stability. Easy to install with compliant UL94V-0 flame rating, the 1.5KE24CA provides durable, high-performance protection in a compact, environmentally friendly package.
Order your STMicroelectronics Series 1.5KE24CA transient voltage suppression diode today and give your projects the dependable overvoltage protection they deserve.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS 15KE24CA?
You can click on the BUY or RFQ button to purchase 15KE24CA from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 15KE24CA?
You can download the 15KE24CA datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of 15KE24CA?
STMICROELECTRONICS
