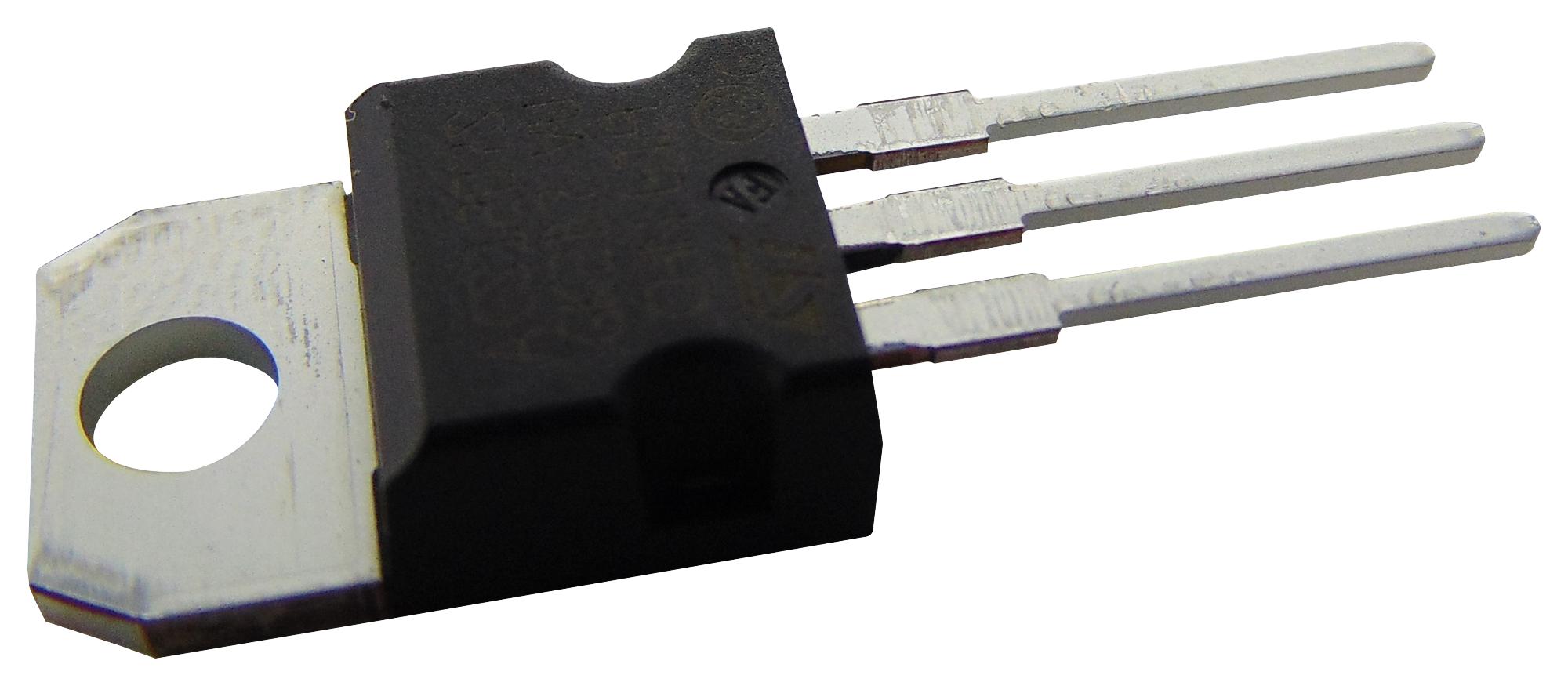

STMICROELECTRONICS ACS1207ST AC switch
The ACS120 is an overvoltage protected AC switch designed for reliable control of low power loads up to 2A in household appliances and HVAC systems. It features high blocking voltage of 700V, avalanche control with a typical voltage of 1100V, and high noise immunity, eliminating the need for external snubbers. Embedded with a high voltage clamp and gate level shifter, it ensures safe switching of inductive loads such as relays, fans, and defrost heaters. Its compact packages and direct microcontroller interface simplify installation and enhance system durability, meeting industry standards like IEC 61000-4-5 for surge immunity.
STMICROELECTRONICS ACS1207ST AC switch Specifications:
- Blocking voltage: Vorm / Varm = 700 V
- Avalanche controlled: Vo, typ. = 1100 V
- Repetitive peak off-state voltage: 700 V
- Nominal conducting current: 2 A RMS
- Non-repetitive surge peak on-state current: 20 A
- Peak gate current: < 10 mA
- Gate trigger voltage: 5 V
- Operating junction temperature: -30°C to +125°C
- Storage temperature range: -40°C to +150°C
- DPAK and TO-220 package options available
- Maximum lead soldering temperature: 260°C for 10 seconds
- Thermal resistance (junction to case): 26 °C/W (TO-220AB), 70 °C/W (DPAK)
Buy the STMicroelectronics ACS120 – Reliable Overvoltage Protected AC Switch for Industrial Applications
Experience the robust performance of the ACS120, a high-voltage AC switch designed for safe and reliable operation in controlling low power loads up to 2A. Its overvoltage self-protection, avalanche control, and noise immunity eliminate the need for external snubbers, simplifying circuit design. Suitable for appliances such as washers, refrigerators, and air conditioners, it provides effective surge handling and ensures compliance with industry standards. Easy to integrate with microcontrollers, the ACS120 offers durable performance in demanding industrial environments, making it ideal for modern automation systems.
Buy STMicroelectronics ACS120 now and ensure dependable switching with overvoltage protection for your low power load applications, including household appliances and HVAC systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS ACS1207ST?
You can click on the BUY or RFQ button to purchase ACS1207ST from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part ACS1207ST?
You can download the ACS1207ST datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of ACS1207ST?
STMICROELECTRONICS
