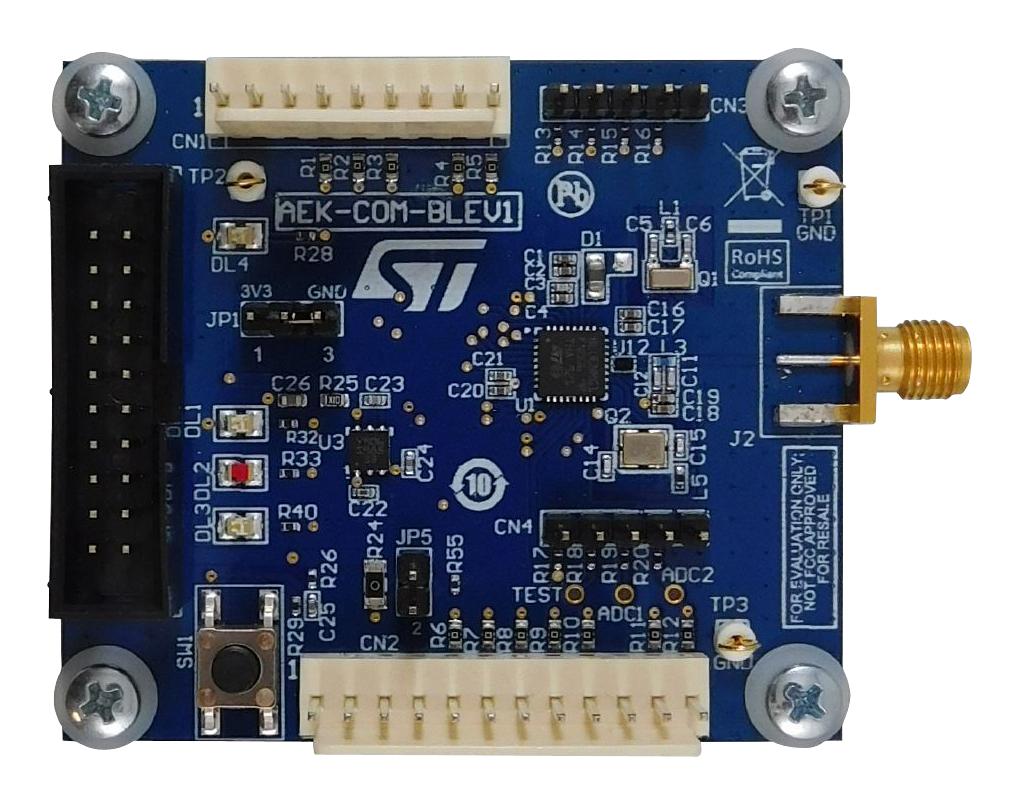

STMICROELECTRONICS AEKCOMBLEV1 Bluetooth Communication Board
The STMICROELECTRONICS AEK-COM-BLEV1 evaluation board provides a platform for developing Bluetooth low energy applications. Built around the BlueNRG-1 system-on-chip, it offers features like up to +8 dBm output power, excellent receiver sensitivity, and low power consumption. It's designed for factory automation, mobility services, and other Bluetooth-enabled applications, and comes with pre-programmed network processor software and a development kit for easy integration.
STMICROELECTRONICS AEKCOMBLEV1 Bluetooth Communication Board Specifications:
- Based on: BlueNRG-1 Bluetooth low energy system on chip
- Output Power: +8 dBm (at antenna connector)
- Receiver Sensitivity: -88 dBm
- Power Consumption: 7.7 mA RX, 8.2 mA TX (+0 dBm)
- Bluetooth Compliant: Bluetooth low energy
- Roles Supported: Master, slave, simultaneous master-and-slave
- Balun: BALF-NRG-02D3 (integrated matching network and harmonics filter)
- User LEDs: 3
- Debug Connector: JTAG
- Processor: Pre-programmed as network processor
- Board Size: 60 x 40 mm
- Initiative: AutoDevKit
- Compliance: RoHS and WEEE
- Connector: 12-pin or 9-pin male connector (SPI, serial interface or I²C)
