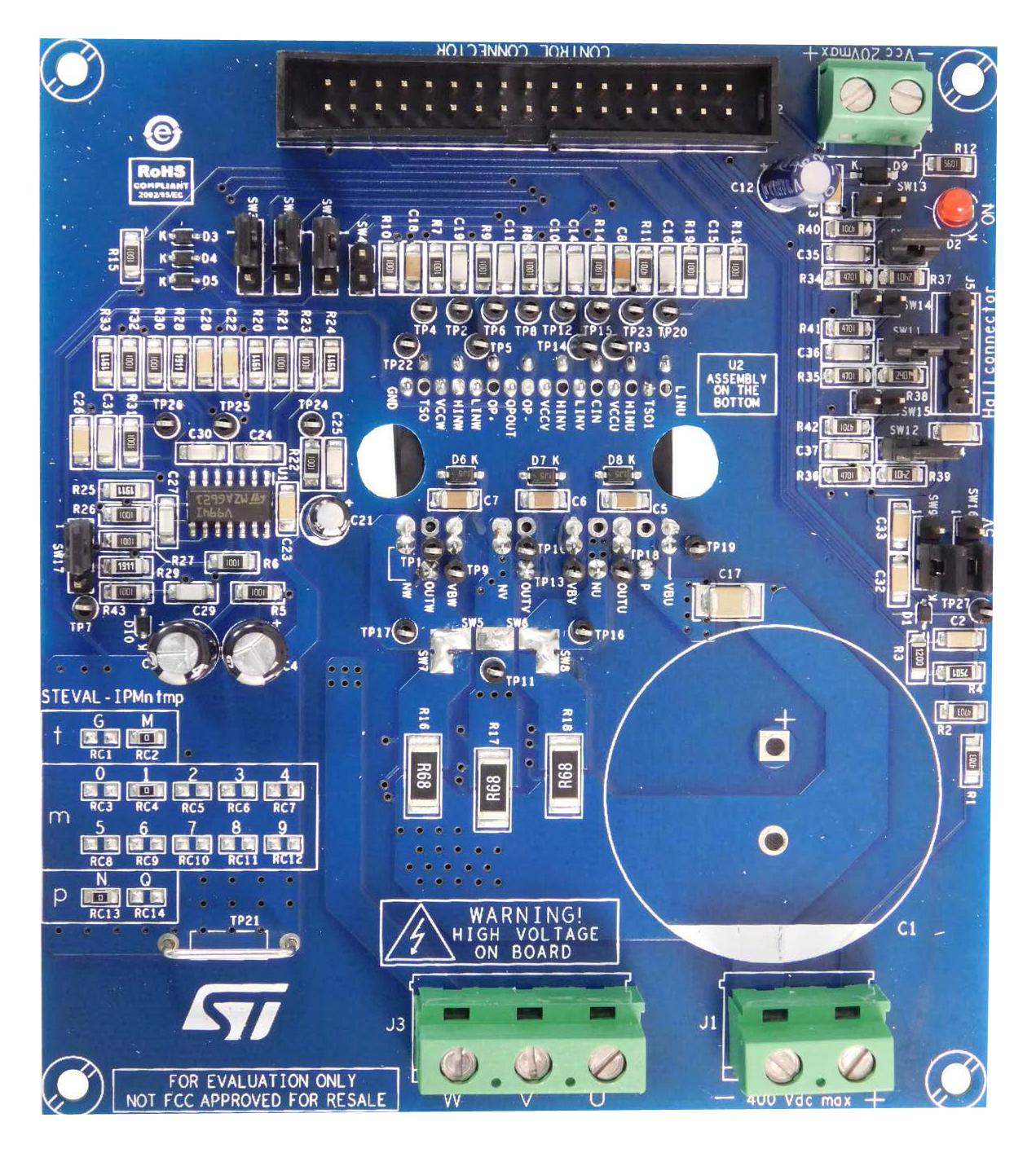

STMICROELECTRONICS STEVALIPMNM1N Motor Control Power Board
The STEVAL-IPMnM1N is a compact, high-efficiency motor drive power board based on the SLLIMM-nano 2 series MOSFETs, designed for driving high power motors in various applications such as white goods, air conditioning, and inverters. It features a robust IPM with short-circuit rugged MOSFETs, integrated temperature sensors, overcurrent protection, and versatile current sensing options suitable for single or three-shunt configurations. Its small size, minimal BOM, and compatibility with STM32 control boards make it an ideal solution for industrial motor control systems.
STMICROELECTRONICS STEVALIPMNM1N Motor Control Power Board Specifications:
- Input voltage: 125 to 400 Voc
- Power Nominal: up to 60 W
- Current: in to 0.6 A
- Input auxiliary voltage: up to 20 V
- MOSFET: STIPN1M50T-H
- Size: Small form factor, minimal BOM
- Protection features: Overcurrent, undervoltage lockout, temperature sensor, fault detection
- Control interface: 32-pin motor control connector, Hall/encoder inputs
- Sensing options: internal op-amps, external op-amps, single or triple current sensing
- Compatibility: Works with STM32 control boards for field-oriented control (FOC)
Buy the STMicroelectronics Series SLLIMM-nano Motor Drive: STEVAL-IPMnM1N
Purchase the STMicroelectronics motor control power board online today and experience reliable, high-performance motor driving solutions suitable for white goods, HVAC, and industrial automation. With integrated protection features, compact size, and compatibility with STM32 control boards, this board offers an ideal platform for developing efficient and durable motor systems. Whether you are designing new equipment or upgrading existing systems, this product guarantees advanced control capabilities, safety features, and ease of integration, making it a valuable asset for your automation projects.
Get STMicroelectronics STEVAL-IPMnM1N today—built for high efficiency, robust protection, and versatile motor control applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALIPMNM1N?
You can click on the BUY or RFQ button to purchase STEVALIPMNM1N from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALIPMNM1N?
You can download the STEVALIPMNM1N datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALIPMNM1N?
STMICROELECTRONICS
