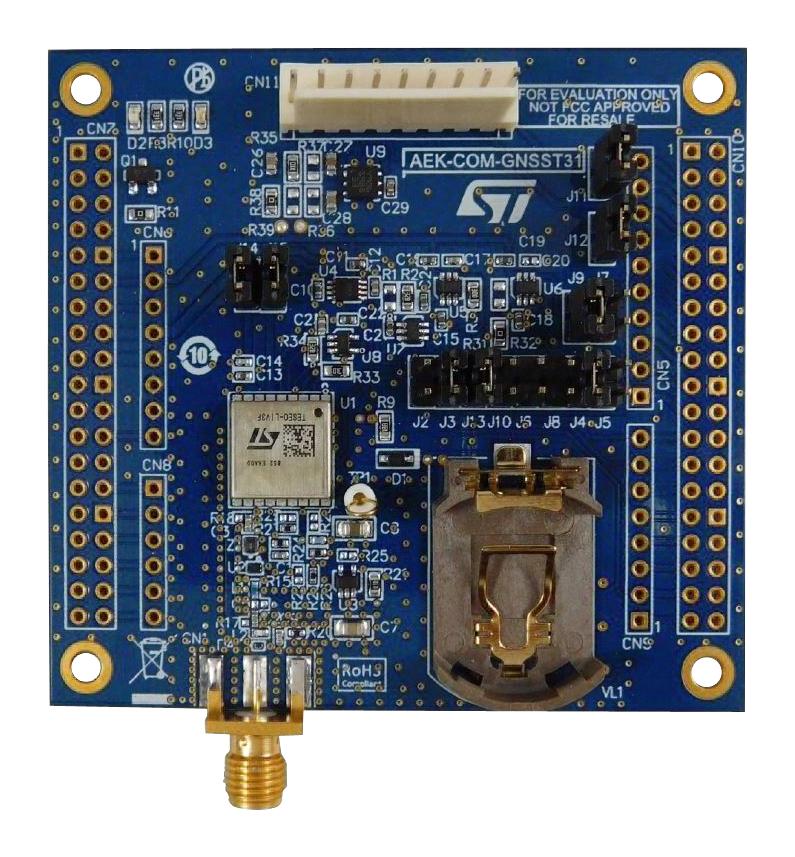

STMICROELECTRONICS AEKCOMGNSST31 GNSS Evaluation Board
The STMICROELECTRONICS AEK-COM-GNSST31 evaluation board provides a platform for developing GNSS applications using the Teseo-LIV3F module. This board is part of the AutoDevKit™ initiative and offers features like UART and I²C ports, configurable digital I/O, and support for assisted GNSS. It's ideal for automotive tracking, smart city applications, and mobility services, enabling rapid prototyping and development.
STMICROELECTRONICS AEKCOMGNSST31 GNSS Evaluation Board Specifications:
- Sensitivity: -162 dBm indoor (tracking mode)
- Interfaces: UART and I²C ports
- Digital I/O: Configurable digital I/O timepulse
- Input: EXTINT input for wakeup
- Protocol: NMEA protocol
- GNSS: Predictive autonomous, Predictive server-based, Real-time server-based
- Compatibility: Compatible with SPC5
- Filter: LNA and SAW filter on the RF path
- Connector: SMA female antenna connector
- Design: Highly compact design: 70 x 65 mm
- Voltage: Operating supply voltage: 3.3 - 5 V
- Temperature: Ambient temperature: -40/+85 °C
- Initiative: Part of the AutoDevKit™ initiative
- Compliance: RoHS and WEEE compliant
Buy the AEK-COM-GNSST31 STMICROELECTRONICS GNSS Evaluation Board | myMectronic
Securely purchase the STMICROELECTRONICS AEK-COM-GNSST31 evaluation board for your next project.
Buy Now
