STMICROELECTRONICS AEKMCUC4MLIT1 Chorus 4M Automotive Microcontroller

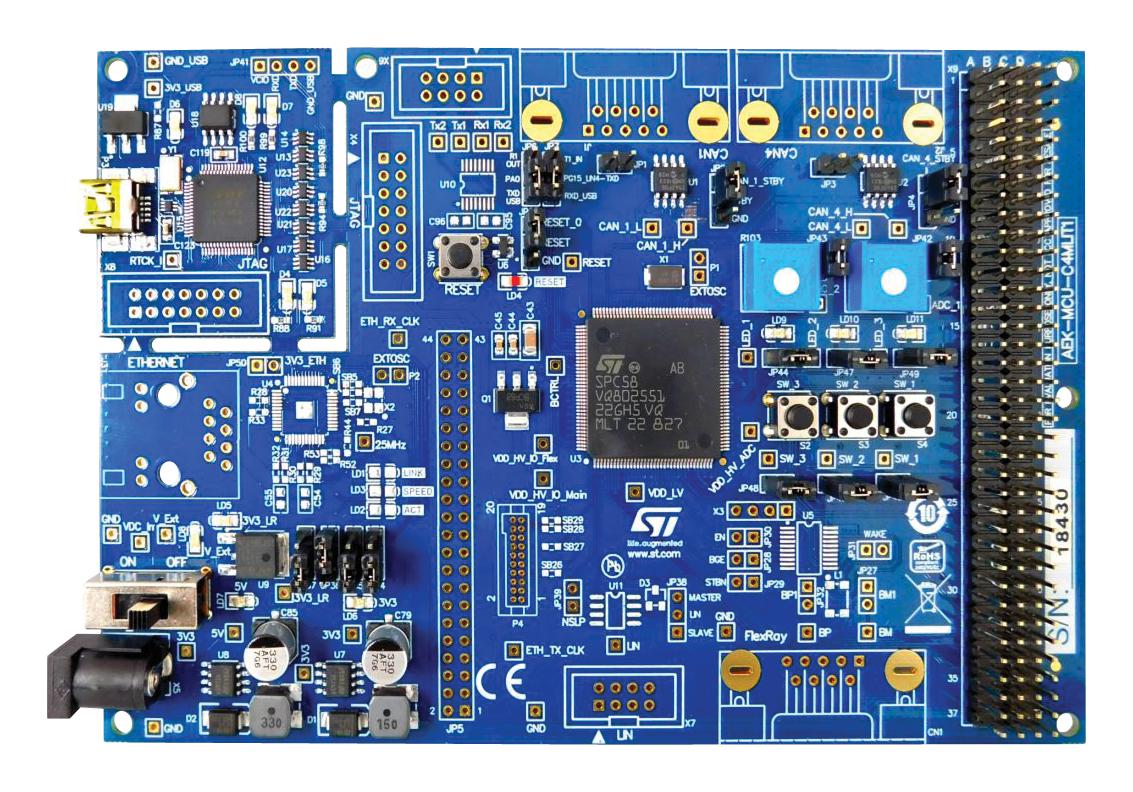

The AEK-MCU-C4MLIT1 development board from STMicroelectronics is specifically engineered for automotive and transportation applications requiring high safety and security levels. It incorporates the SPC58EC80E5 32-bit automotive-grade microcontroller with 4 MB flash memory, providing access to both MCU cores, GPIOs, and peripherals like ISO CAN FD. The board includes a PLS debugger/programmer, an extension connector for interoperability with AutoDevKit, and supports SPC5-STUDIO for rapid development and evaluation. It's an ideal platform for prototyping and testing automotive-related systems.
STMICROELECTRONICS AEKMCUC4MLIT1 Chorus 4M Automotive Microcontroller Specifications:
- microcontroller: SPC58EC80E5, 32-bit Power Architecture e200z4d dual core, 4224 kB flash + 128 kB data flash
- package: eTQFP144
- programmer: Integrated programmer and debugger
- transceivers: 2 integrated ISO CAN FD transceivers
- usb_port: 1 USB virtual COM Port
- push_buttons: 3 user push buttons
- user_leds: 3 user LEDs
- potentiometers: 2 potentiometers for ADC quick evaluation
- gpio_access: All GPIOs and signals accessible by a 4x37 connector
- board_supply: 12 VDC
- board_size: 150 x 101 mm
- automotive_grade: All ST components are qualified Automotive grade
- certification: CE certified; RoHS and China RoHS compliant
- compliance: WEEE compliant (2012/19/UE RAEE II)
- initiative: Part of the AutoDevKit™ initiative
- system_requirements_pc: Windows PC
- usb_cable: Type A to mini-B
- input_voltage: 100-240 Vac (EU plug). Output: 12 V-2 A
- software_requirements_studio: SPC5-Studio for low-level drivers, code generation, system and peripherals configuration, pin configuration and firmware development
- programmer_debugger: PLS UDE for MCU programming and debugging
- autodevkit_plugin: AutoDevKit plug-in for cross-platform functional board components
