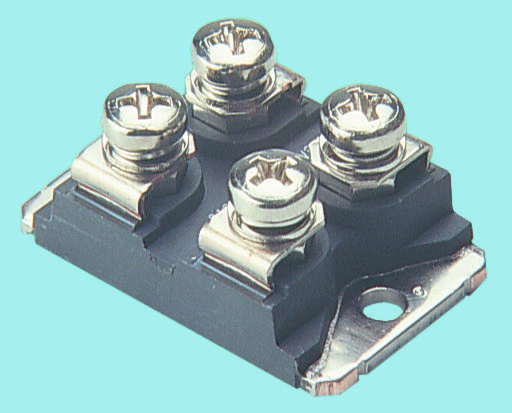

STMICROELECTRONICS STE88N65M5 Power MOSFET
The STE88N65M5 is a high-performance N-channel power MOSFET featuring extremely low on-resistance and a high voltage rating of 710V, designed for switching applications. Based on innovative proprietary technology, including the MDmesh V structure and ISOTOP packaging, it offers excellent switching performance, high dv/dt capability, and robust avalanche testing. Suitable for industrial power supplies, motor drives, and other demanding power conversion systems, this device ensures superior power density, efficiency, and reliability under high current and temperature conditions.
STMICROELECTRONICS STE88N65M5 Power MOSFET Specifications:
- Vds Max: 710 V
- Id Continuous: 88 A at 25°C
- Id Pulsed: 352 A
- Rds(on): 0.024-0.029 Ω
- Vgs Threshold: 3-5 V
- Maximum Gate-Source Voltage: +25 V
- Drain-Source Breakdown Voltage: 650 V
- Total Dissipation: 494 W
- Maximum Junction Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Thermal Resistance Junction-Case: 0.253°C/W
- Thermal Resistance Junction-Ambient: 30°C/W
- Pulse Avalanche Energy: 2000 mJ
- Avalanche Current: 15 A
- Switching Times: 16-56 ns
- Package Type: ISOTOP™
Buy the STMicroelectronics STE88N65M5 – Reliable Power MOSFET for Industrial Applications
Purchase the STMicroelectronics STE88N65M5 power MOSFET online today to ensure superior efficiency and power handling for your industrial and switching applications. This high-voltage, low Rds(on) device is designed for demanding environments, providing excellent switching speeds, robust avalanche tolerance, and outstanding thermal performance. Ideal for power supplies, motor drives, and high-current switching systems, the STE88N65M5 guarantees reliable operation, high power density, and energy-efficient performance. Order now for fast delivery and seamless integration into your existing setups.
Buy STMicroelectronics STE88N65M5 now and experience unmatched reliability, low Rds(on), high voltage capacity, ideal for demanding switching and power management tasks.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STE88N65M5?
You can click on the BUY or RFQ button to purchase STE88N65M5 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STE88N65M5?
You can download the STE88N65M5 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STE88N65M5?
STMICROELECTRONICS
