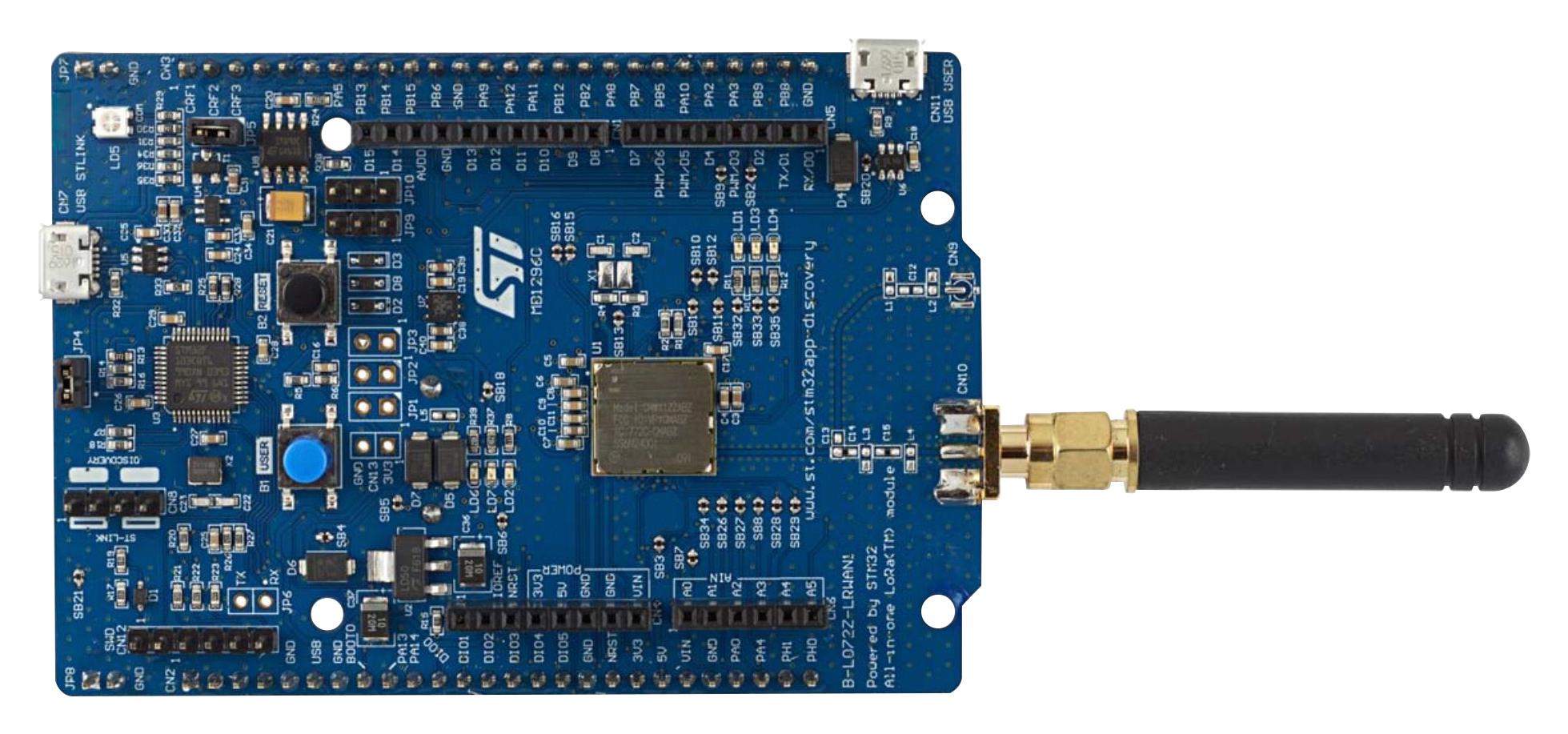

STMICROELECTRONICS BL072ZLRWAN1 LoRaWAN Development Kit
The B-LO72Z-LRWAN1 Discovery kit is a comprehensive development tool designed for LoRa® and LPWAN protocol solutions. It features the Murata CMWX1ZZABZ-091 LoRa module powered by an ultra-low-power STM32L072CZ MCU, supporting long-range communication with high interference immunity and low current consumption. The kit includes an embedded SX1276 transceiver supporting multiple modulation schemes such as LoRa®, FSK, GFSK, MSK, GMSK, and OOK, along with USB connectivity, LEDs, push-buttons, Arduino connectors, and an onboard debug interface. Ideal for IoT applications, it supports various development environments and is certified for LoRaWAN™ class A and C.
STMICROELECTRONICS BL072ZLRWAN1 LoRaWAN Development Kit Specifications:
- LoRa® module: CMWX1ZZABZ-091 by Murata
- MCU: STM32L072CZ Series ARM Cortex-M0+ core
- Flash memory: 192 Kbytes
- RAM: 20 Kbytes
- EEPROM: 20 Kbytes
- Radio transceiver: SX1276 supporting LoRa®, FSK, GFSK, MSK, GMSK, OOK
- Output power: +14 dBm or +20 dBm selectable
- Maximum link budget: 157 dB
- Bit rate: up to 300 Kbit/s
- Sensitivity: down to -137 dBm
- Front end IIP3: -12.5 dBm
- Blocking immunity: 89 dB
- RX current: 10 mA, register retention: 200 nA
- Synthesizer resolution: 61 Hz
- Interfaces: USB 2.0 FS, ADC, 16-bit timer, SPI, LP-UART
- Connectors: SMA and U.FL RF interfaces with 50 Ohm antenna
- Power supply: USB, external Viy/3.3 V, or 3xAAA batteries
- Development environments: Keil MDK-ARM, IAR EWARM, GCC IDEs, ARM mbed
- Includes: debug interface, LEDs, push-buttons, Arduino V3 connectors, USB OTG Micro-B
Buy the STMicroelectronics BL072ZLRWAN1 – Reliable LoRaWAN Development Kit for IoT Applications
Enhance your IoT development with the STMicroelectronics LoRaWAN Discovery kit. Featuring the Murata LoRa module, STM32L072CZ MCU, and versatile interfaces, this kit supports long-range communication, multiple modulation schemes, and easy integration. It includes Arduino connectors, USB interface, LEDs, push-buttons, and debug tools, making it ideal for building reliable, low-power wireless sensor networks and IoT solutions. Ideal for developers targeting IoT, smart cities, and industrial automation, enabling fast prototyping and deployment.
Buy STMicroelectronics BL072ZLRWAN1 now and explore advanced long-range IoT networking with comprehensive development features.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BL072ZLRWAN1?
You can click on the BUY or RFQ button to purchase BL072ZLRWAN1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BL072ZLRWAN1?
You can download the BL072ZLRWAN1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BL072ZLRWAN1?
STMICROELECTRONICS
