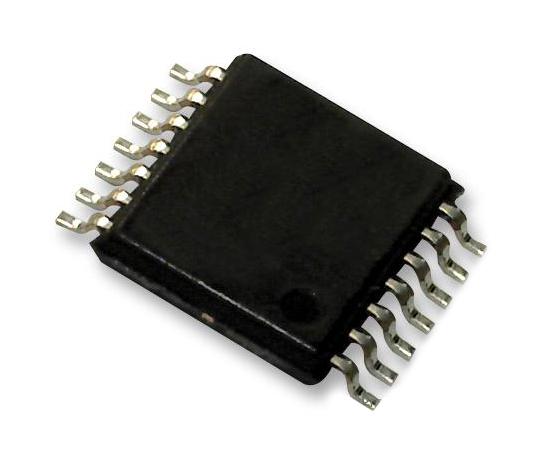

STMICROELECTRONICS TS924IYPT Quad Operational Amplifier
The TS924 and TS924A are rail-to-rail quad operational amplifiers designed for low-voltage, battery-operated audio and instrumentation applications. They feature high output current capability of 80 mA, low noise at 9 nV/√Hz, low distortion, and offset voltages of 0.9 mV. Optimized for operation from 2.7V to 12V, these amplifiers support high-speed performance with a bandwidth of 4 MHz, slew rate of 1.3 V/µs, and drive low impedance loads, making them ideal for sound cards, headphone amplifiers, and multimedia systems.
STMICROELECTRONICS TS924IYPT Quad Operational Amplifier Specifications:
- Supply Voltage Range: 2.7V to 12V
- Output Current: 80 mA
- Bandwidth: 4 MHz
- Slew Rate: 1.3 V/µs
- Input Offset Voltage: 0.9 mV (TS924A)
- Input Offset Voltage Drift: 2 yV/°C
- Input Bias Current: 15 to 100 nA
- Input Common Mode Voltage Range: minus 0.2V to Vcc + 0.2V
- Output Voltage Swing: high 2.87 V to 2.90 V, low 50 mV to 300 mV (depending on load)
- Total Harmonic Distortion: 0.005%
- Channel Separation: 120 dB
- ESD Tolerance: 3 kV (HBM)
Buy the STMicroelectronics TS924 U+2013 Reliable Quad Operational Amplifier for Industrial Applications
Enhance your electronic designs with the TS924 quad operational amplifier, offering rail-to-rail input/output, high output current, low noise, and fast response. Its wide supply voltage range and low offset voltage make it perfect for audio systems, instrumentation, and multimedia applications. Designed for high-speed performance and stability even with capacitive loads up to 500 pF, this device ensures professional-level reliability. Purchase online today and leverage advanced features for your industrial and consumer electronics projects.
Buy STMicroelectronics TS924 now and experience unmatched reliability and performance with high output current and low noise for your instrumentation and audio projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TS924IYPT?
You can click on the BUY or RFQ button to purchase TS924IYPT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TS924IYPT?
You can download the TS924IYPT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TS924IYPT?
STMICROELECTRONICS
