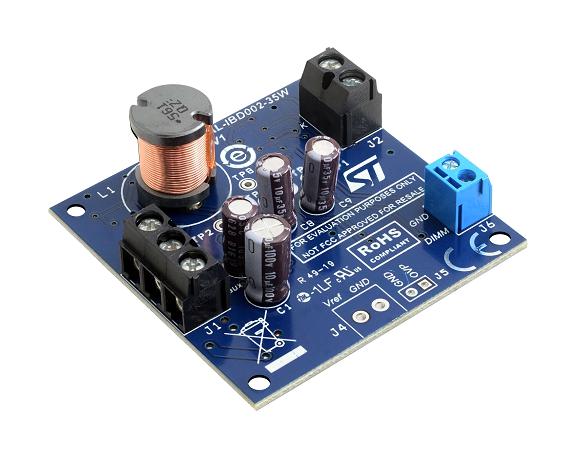

STMICROELECTRONICS EVALIBD00235W LED Dimming Driver
This demonstration board manages a dimmable 35 W LED load using an inverse buck converter controlled by HVLED002, capable of providing up to 700 mA. It features a single-stage circuitry with components like D1, L1, and Q1, supporting a broad input voltage range of 48 Vdc to 60 Vdc and an auxiliary 15 Vdc supply. The device supports both analog and PWM dimming from 1% to 100%, offering high efficiency (>97%) at full load, low ripple current, and no-load power consumption below 50 mW. Suitable for efficient, dimmable LED lighting applications.
STMICROELECTRONICS EVALIBD00235W LED Dimming Driver Specifications:
- Input voltage: 48 Vdc-60 Vdc; Vaux: 15 Vdc
- LED output voltage: 24 Vdc-48 Vdc
- Maximum LED output current: 700 mA
- Dimming range: 1%-100%
- Efficiency: >97% at full load, >95% at 20% load (analog dimming)
- Ripple current: <80 mA
- No-load power: less than 50 mW at 60 Vdc
- Size: 50 mm x 50 mm, single-side PCB
- Short-circuit protection included
- RoHS compliant
Buy the Buy STMicroelectronics EVAL IBD002 35W Inverse Buck LED Driver Part Number EVALIBD00235W Online
Purchase the STMicroelectronics LED Dimming Driver EVALIBD00235W online to unlock reliable, high-efficiency LED lighting solutions. This versatile 35W inverter manages dimmable LED loads with ease, supporting both analog and PWM dimming from 1% to 100%. It features a compact 50 mm x 50 mm PCB, low ripple current, and robust short-circuit protection, making it ideal for professional lighting applications requiring precision control and energy efficiency. Order today for fast delivery and expert support.
Get STMicroelectronics EVALIBD00235W today—designed for efficient, high-performance LED dimming with PWM and analog control.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALIBD00235W?
You can click on the BUY or RFQ button to purchase EVALIBD00235W from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALIBD00235W?
You can download the EVALIBD00235W datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALIBD00235W?
STMICROELECTRONICS
