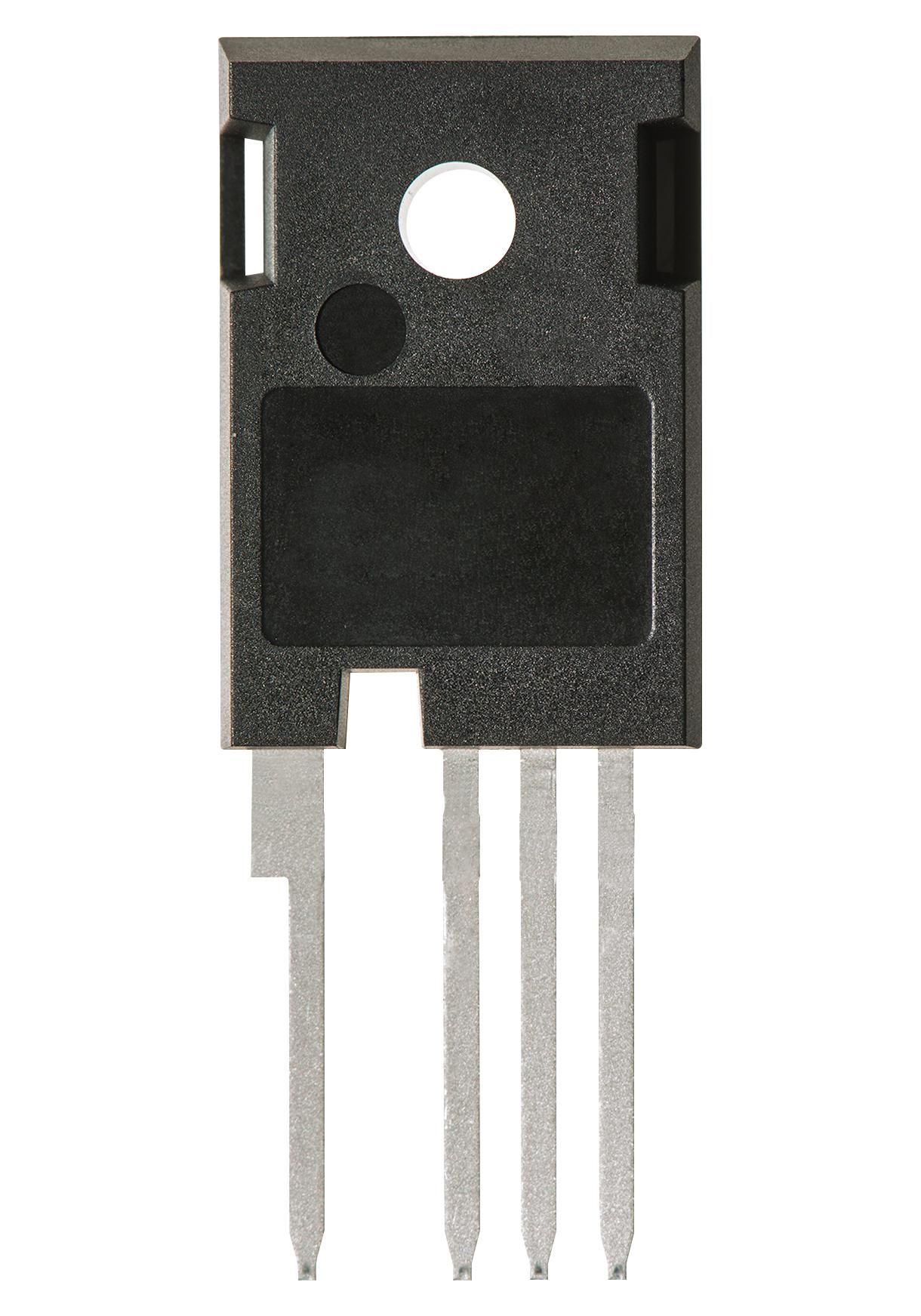

STMICROELECTRONICS STGW100H65FB24 High-Voltage Power IGBT
The STGW100H65FB2-4 is a high-performance trench gate field-stop IGBT designed for demanding industrial power applications. Operating at 650 V with a continuous collector current of 145 A and pulsed current of 300 A, it features low saturation voltage, minimized tail current, and excellent switching capabilities thanks to an extra driving Kelvin pin. Its compact TO247-4 package ensures efficient thermal management, making it ideal for welding, power factor correction, UPS, solar inverters, and high-speed switching applications. The device offers reliability, efficiency, and robust electrical characteristics for industrial environments.
STMICROELECTRONICS STGW100H65FB24 High-Voltage Power IGBT Specifications:
- Collector-emitter voltage: 650 V
- Continuous collector current at 25°C: 145 A
- Continuous collector current at 100°C: 91 A
- Pulsed collector current (tp < 1 ps, Ty < 175 °C): 300 A
- Gate-emitter voltage: ±20 V
- Transient gate-emitter voltage: ±30 V
- Total power dissipation at 25°C: 441 W
- Storage temperature range: -55°C to 150°C
- Operating junction temperature range: -55°C to 175°C
- Thermal resistance junction-case: 0.34 °C/W
- Thermal resistance junction-ambient: 50 °C/W
- Package: TO247-4
- Maximum junction temperature: 175°C
- Vce(sat): Typical 1.55 V at 100 A
- Features include low thermal resistance, tight parameter distribution, and excellent switching performance.
Buy the STMicroelectronics STGW100H65FB2-4 – Reliable Power IGBT for Industrial Applications
Experience superior efficiency and robustness with this high-voltage power IGBT designed for demanding industrial environments. The STGW100H65FB2-4 offers a perfect balance of high current handling, low saturation voltage, and excellent switching capabilities, making it ideal for welding, inverters, and UPS systems. Its TO247-4 package ensures effective heat dissipation and easy integration into various power modules. Choose this reliable component to optimize your power conversion and switching needs, ensuring long-lasting performance and energy savings in industrial applications.
Buy STGW100H65FB2-4 now and experience unmatched reliability and performance for high-speed switching and industrial power systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STGW100H65FB24?
You can click on the BUY or RFQ button to purchase STGW100H65FB24 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STGW100H65FB24?
You can download the STGW100H65FB24 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STGW100H65FB24?
STMICROELECTRONICS
