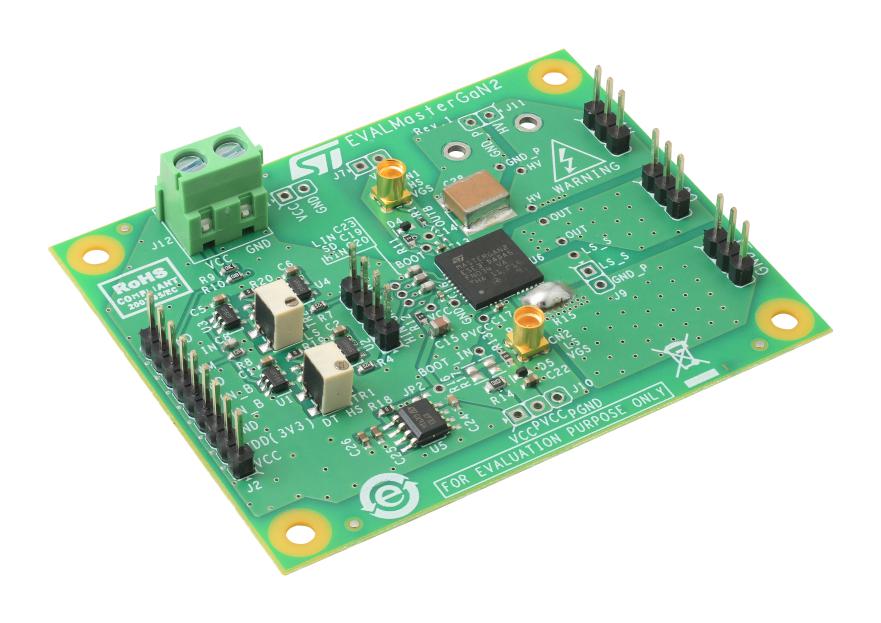

STMICROELECTRONICS EVALMASTERGAN2 Power Electronics Evaluation Board
The EVALMASTERGAN2 is an evaluation board designed for high-power applications featuring the MASTERGAN2 high voltage driver with two 650V GaN HEMT transistors. It provides easy access to all pins, includes programmable deadtime generation, an onboard 3.3V regulator for low-voltage logic circuits, and supports customization such as external bootstrap diodes and separate supply voltages. With a 56 x 70 mm FR-4 PCB and a thermal resistance of 35°C/W, this board efficiently evaluates high-frequency, high-voltage half-bridge topologies in a compact, RoHS-compliant package.
STMICROELECTRONICS EVALMASTERGAN2 Power Electronics Evaluation Board Specifications:
- Dimensions: 56 x 70 mm
- Thermal Resistance: 35°C/W junction to ambient
- Supply Voltage: 4.5V to 6V for VCC, up to 650V high voltage input
- High Voltage GaN HEMT: 650V enhanced mode
- Onboard 3.3V linear regulator for logic circuits
- Deadtime Generator: programmable with adjustable deadtimes
- Input Signal Range: up to 20V for LIN and HIN
- Connectors: high bandwidth MMCX connectors for monitoring GH and GL pins
- RoHS compliant, FR-4 PCB material
- Customization options: external bootstrap diode, separate VCC/VCCP/VBO supplies, low-side shunt resistor
- Includes spare footprint for additional circuitry
- Suitable for high-frequency power switching testing
Buy the Buy STMicroelectronics MASTERGAN2 Part Number EVALMASTERGAN2 Online
Experience precise testing and evaluation of high voltage GaN HEMT half-bridge topologies with the STMicroelectronics MASTERGAN2 evaluation board. This compact yet feature-rich board provides programmable deadtime, onboard 3.3V regulation, and easy connectivity for monitoring high-frequency signals. Designed for power electronics developers, it offers flexibility with customizable options like external bootstrap diodes and different supply configurations, streamlining the development process for advanced power converter, inverter, and motor drive applications.
Get STMicroelectronics MASTERGAN2 evaluation board today—designed for high-power density, efficient testing, and flexible customization in power electronics.
