STMICROELECTRONICS STPS1045DEETR Power Schottky Rectifier
The STPS1045DEE is a high-speed Power Schottky rectifier in a compact PowerFLAT package, ideal for switch mode power supplies, high-frequency DC to DC converters, inverters, free-wheeling, and polarity protection applications. Designed with very low conduction and switching losses, it features a low profile, high junction temperature, and explosion-proof avalanche capacity, making it suitable for space-constrained environments. It offers a maximum forward voltage of 0.45V at 10A, repetitive peak reverse voltage of 45V, and is compliant with ECOPACK®2 standards for environmental safety and reliability.
STMICROELECTRONICS STPS1045DEETR Power Schottky Rectifier Specifications:
- Repetitive peak reverse voltage: 45 V
- Forward rms current: 15 A
- Maximum junction temperature: 175 °C
- Forward voltage drop: 0.45V at 10A
- Surge non-repetitive forward current: 100 A
- Avalanche power: 300 W
- Storage temperature range: -65°C to +175°C
- Junction to case thermal resistance: 4 °C/W
- Package: PowerFLAT (3.3 x 3.3)
- Lead-free and UL94V-0 compliant epoxy
- Dimensions: 3.30 x 3.30 mm (typical size), with exposed pad for heat dissipation

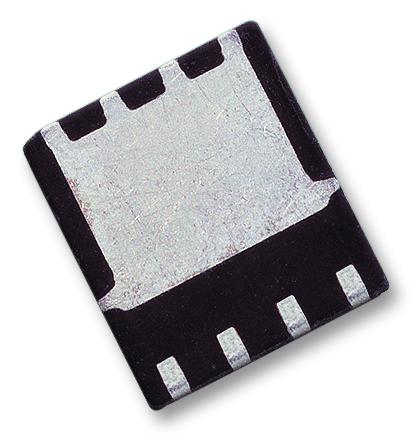

Buy the Buy STMicroelectronics Power Schottky Rectifier Part Number STPS1045DEE Online
Purchase the STPS1045DEE Power Schottky rectifier online for high-speed power conversion applications. This compact, low-profile device features excellent thermal performance, low conduction, and switching losses, ideal for space-limited environments. Designed for switch mode power supplies, high-frequency DC to DC converters, and inverter circuits, it supports high junction temperatures up to 175°C and provides a maximum forward voltage of 0.45V at 10A. Enjoy fast delivery and ensure reliable, efficient power management in your electronic systems.
Buy STMicroelectronics STPS1045DEE now and experience unmatched reliability and high-efficiency performance in power conversion.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STPS1045DEETR?
You can click on the BUY or RFQ button to purchase STPS1045DEETR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STPS1045DEETR?
You can download the STPS1045DEETR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STPS1045DEETR?
STMICROELECTRONICS
