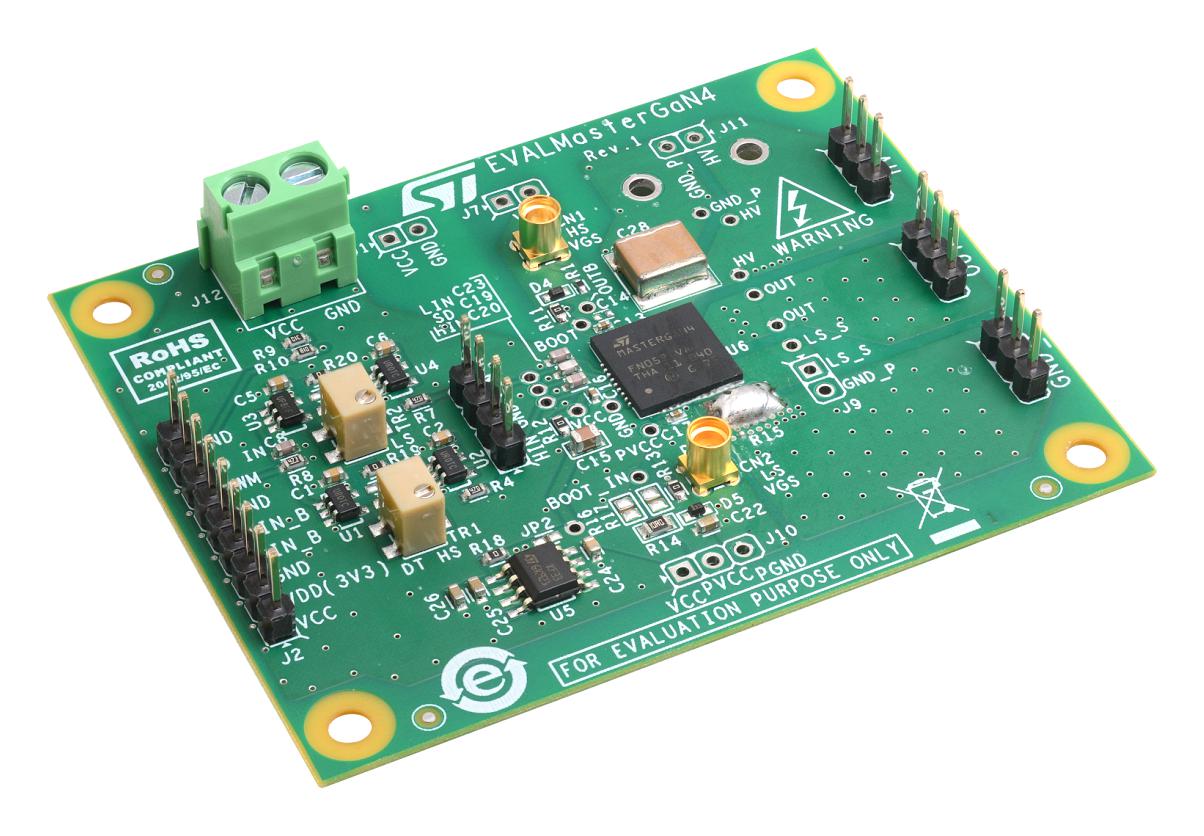

STMICROELECTRONICS EVALMASTERGAN4 High Power Driver Board
The EVALMASTERGAN4 evaluation board is a versatile tool designed to assess the performance of the MASTERGAN4 high-power density half-bridge high voltage driver with two 650 V enhanced mode GaN HEMT. It features an on-board deadtime generator, a linear 3.3 V regulator for low-voltage logic, and accessible pins for all MASTERGAN4 functions. Compatible with single or complementary driving signals, it includes optional footprints for customization, making it ideal for developing high-efficiency power topologies in research and industrial applications. Its compact 56 x 70 mm design ensures easy integration into various projects.
STMICROELECTRONICS EVALMASTERGAN4 High Power Driver Board Specifications:
- Dimensions: 56 x 70 mm
- Thermal resistance: 35°C/W junction to ambient
- Voltage handling: Up to 600 V
- VCC supply voltage: 4.5 V to 6 V
- Embedded deadtime generator with adjustable deadtimes
- On-board 3.3 V regulator for external circuitry (up to 50 mA)
- Full pin accessibility for MASTERGAN4
- Compatibility with single or complementary PWM signals
- RoHS compliant
- Includes provisions for external bootstrap diode and low-side shunt resistor
- Designed for high-frequency operation and power topology evaluation
Buy the STMicroelectronics Series MASTERGAN4 High Power Driver: EVALMASTERGAN4
Experience superior power density with the STMicroelectronics MASTERGAN4 evaluation board. This compact, easy-to-use platform allows quick assessment of high-voltage GaN half-bridge drivers, featuring an integrated deadtime generator, a 3.3 V regulator, and robust connections for all MASTERGAN4 pins. Perfect for developing efficient power conversion systems and experimenting with high-frequency topologies, this board supports customization and offers excellent thermal management. Enhance your projects now by purchasing this versatile, RoHS-compliant device online, designed for ease of use and reliable high-performance testing.
Buy STMicroelectronics MASTERGAN4 evaluation board now and seamlessly develop high-efficiency power topologies with advanced GaN HEMT technology.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALMASTERGAN4?
You can click on the BUY or RFQ button to purchase EVALMASTERGAN4 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALMASTERGAN4?
You can download the EVALMASTERGAN4 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALMASTERGAN4?
STMICROELECTRONICS
