STMICROELECTRONICS PNUCLEOIHM002 Motor Control Kit

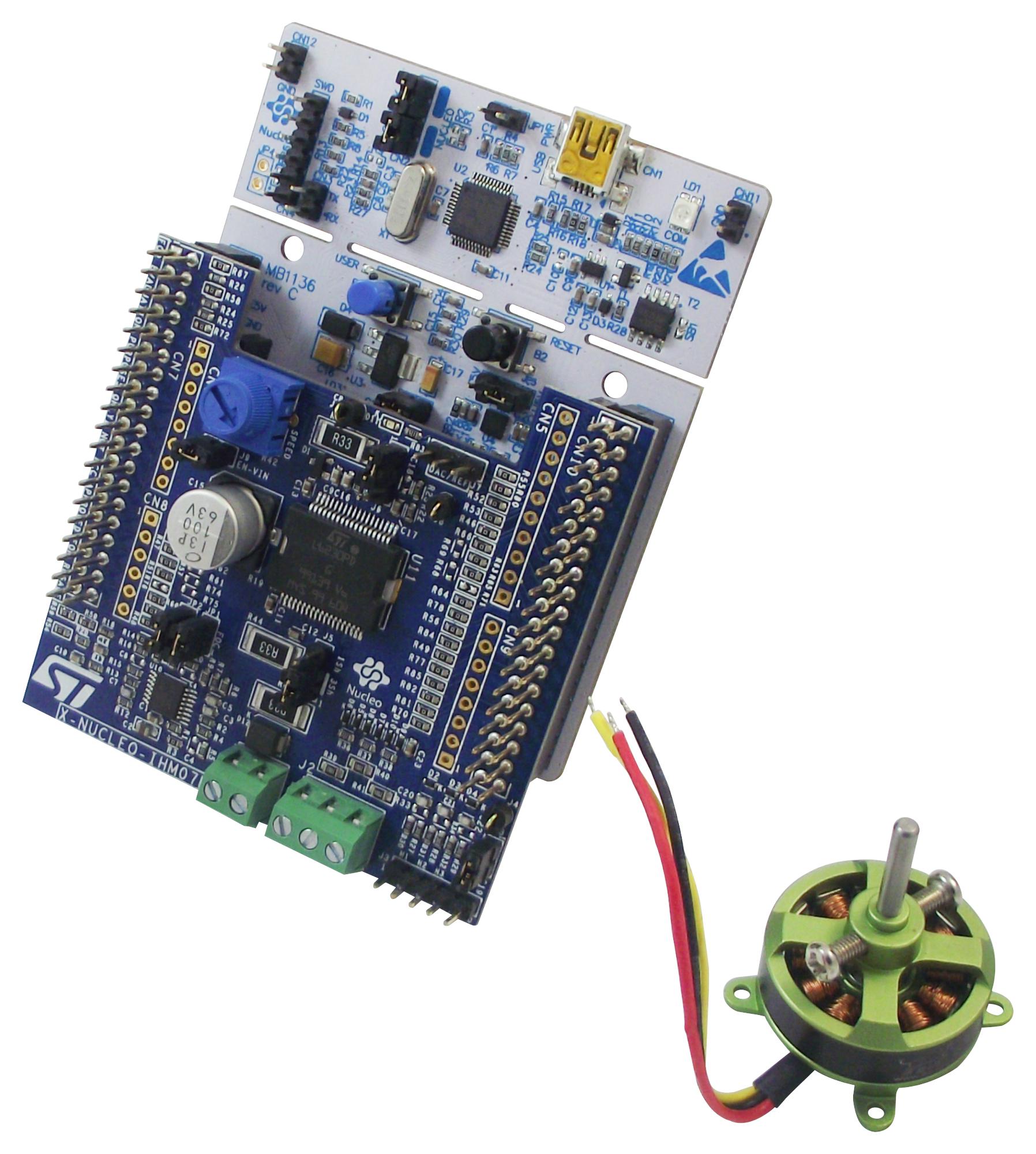

The P-NUCLEO-IHM002 is a comprehensive motor control kit designed for three-phase, low-voltage brushless motors, utilizing the STSPIN L6230 driver and STM32F302R8 MCU. It includes a NUCLEO-F302R8 microcontroller board with ST-LINK/V2-1 debugger, an configurable IHM07M1 driver board supporting sensorless and sensor modes, and a 1700 kV brushless motor. The platform supports FOC and 6-step control algorithms, ideal for prototyping and testing motor control applications with flexible power supply options and integrated peripherals for enhanced performance. Compatible with Arduino™ UNO and ST morpho pins, the kit is suitable for engineers seeking reliable motor development solutions.
STMICROELECTRONICS PNUCLEOIHM002 Motor Control Kit Specifications:
- Control board: NUCLEO-F302R8 with ARM® Cortex®-M4 at up to 72 MHz, 64KB Flash, 16KB SRAM
- Driver board: X-NUCLEO-IHM07M1 supporting 8V to 48V DC, 2.8A peak current, overcurrent and thermal protection
- Motor: Bull-Running BR2804-1700 kV, three-phase PMSM, nominal voltage 11.1V DC, max DC current 5A
- Power supply: Pack includes 12V, 2A power unit for the kit, supporting stable operation
- Communication: Full support for sensorless and sensor modes, configurable current sensing, and compatibility with Arduino™ UNO and ST morpho connectors
- Additional features: Integrated ST-LINK/V2-1 debugger, onboard buttons for user and reset, and flexible connectivity options
Buy the Buy STMicroelectronics Motor Control Kit Part Number PNUCLEOIHM002 Online
Enhance your motor development projects with the STMicroelectronics motor control kit, featuring an STM32 microcontroller, configurable driver, and brushless motor. Designed for three-phase PMSM testing, it supports FOC and 6-step algorithms for sensorless and sensor modes. The kit includes a versatile NUCLEO-F302R8 board with integrated debugger, an adaptable IHM07M1 driver module, and a high-voltage brushless motor, all supported by flexible power options and comprehensive peripherals, making it ideal for prototyping and engineering applications.
Order your STMicroelectronics Series PNUCLEOIHM002 today and accelerate your motor control projects with a reliable, high-performance development platform.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS PNUCLEOIHM002?
You can click on the BUY or RFQ button to purchase PNUCLEOIHM002 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part PNUCLEOIHM002?
You can download the PNUCLEOIHM002 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of PNUCLEOIHM002?
STMICROELECTRONICS
