STMICROELECTRONICS EVLHVLED007W35F LED Driver

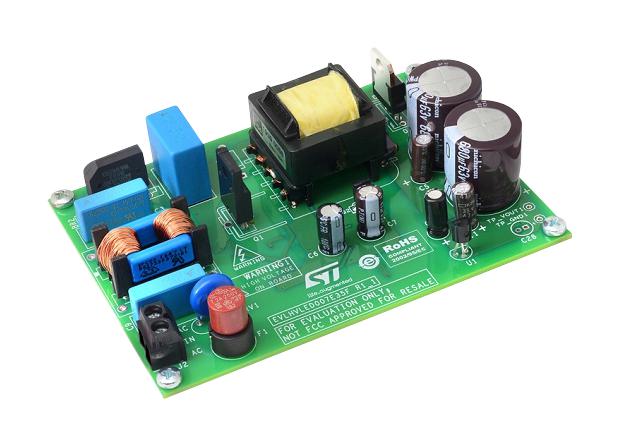

The EVLHVLEDO07W35F is a 35W LED driver based on HVLEDO07 transition mode flyback controller, offering very low total harmonic distortion (THD), high power factor, and efficiency. It features an isolated 48 V DC bus output suitable for secondary circuitry like LED current generators, with an auxiliary 12 V output for small circuits. The design includes fast startup, protections with auto-restart, and complies with standards such as EN61000-3-2 and EN55022 Class-B, ensuring safe, efficient operation in lighting applications.
STMICROELECTRONICS EVLHVLED007W35F LED Driver Specifications:
- AC input voltage: 90V to 265V, 45-66Hz
- Output: 48V/730mA (main), 12V/15mA (auxiliary)
- Power factor: >0.99 at 100VAC, >0.98 at 230VAC
- THD: <3% at 100VAC, <5% at 230VAC
- Efficiency: >89% at full load
- Isolation: DC bus voltage 48V
- Compliance: EN61000-3-2, JEITA-MITI Class-C, EN55022 Class-B
- RoHS compliant
- Features: Fast startup, auto-restart protections, transition mode flyback operation
Buy the Buy STMicroelectronics EVLHVLED007W35F Part Number EVLHVLED007W35F Online
Purchase the STMicroelectronics EVLHVLED007W35F LED driver online today for your lighting projects. This 35W driver provides a stable, isolated 48V output with high power factor and very low THD, ensuring maximum efficiency and minimal harmonic distortion. Designed for LED applications, it features fast startup, robust protections, and complies with relevant standards like EN61000-3-2 and EN55022. Ideal for professional lighting solutions requiring reliable, energy-efficient power conversion, available with quick delivery and support.
Get STMicroelectronics EVLHVLED007W35F today—built for high efficiency, low THD, and reliable LED lighting operation.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVLHVLED007W35F?
You can click on the BUY or RFQ button to purchase EVLHVLED007W35F from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVLHVLED007W35F?
You can download the EVLHVLED007W35F datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVLHVLED007W35F?
STMICROELECTRONICS
