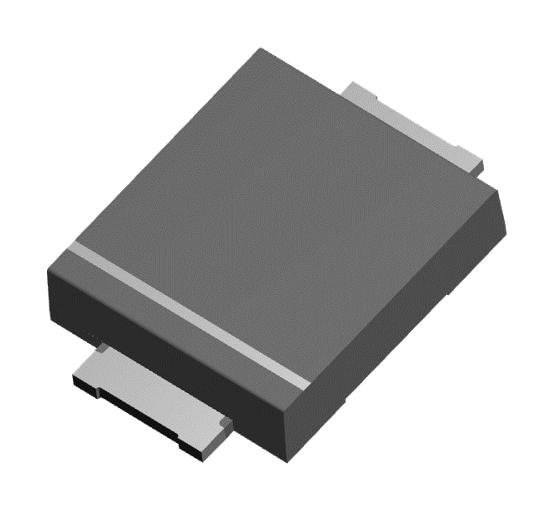

STMICROELECTRONICS SMB15F23A Surge Protection Diode
The SMB15F23A series are high-power TVS diodes designed for efficient surge protection of sensitive electronic circuits. Featuring planar technology for low leakage current and high junction temperature, these unidirectional TVS diodes handle peak pulse power of up to 1500 W (10/1000 ps) and 10 kW (8/20 us). Their flat, thin package (1 mm) supports reliable mounting with matte tin plating. Suitable for applications requiring stand-off voltages up to 23 V, they conform to standards like UL94VO and IEC 61000-4-2, ensuring durability and high performance in electronics protection systems.
STMICROELECTRONICS SMB15F23A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Stand-off voltage: 23 V
- Maximum leakage current: 0.2 UA at 25°C
- Maximum operating junction temperature: 175°C
- Package type: SMB Flat, 1 mm thick
- Lead finishing: matte tin plating
- Standards: UL94VO, IEC 61000-4-2 level 4 (30 kV air and contact discharge)
- Maximum storage temperature: 175°C
- Maximum lead temperature for soldering: 260°C for 10s
- Operating temperature range: -55°C to +175°C
- Peak pulse power dissipation: 1500 W (10/1000 ps), 10 kW (8/20 us)
- Maximum clamping voltage: as per datasheet
- High power capability at Tj max.: 1100 W
- Compliance with JEDEC, JESD standards, and MIL-STD-750
Buy the STMicroelectronics SMB15F23A – Reliable Surge Protection for Industrial Applications
Secure your electronic systems with the STMicroelectronics SMB15F23A surge protection diode, offering high peak pulse power of 1500 W and stand-off voltage of 23 V. Its flat, thin package (1 mm) supports easy mounting in tight spaces. Designed for durable performance, it withstands high surge energies while maintaining low leakage current and operating at temperatures up to 175°C. With compliance to international standards like IEC 61000-4-2 and UL94VO, this diode ensures long-term reliability and shields your circuits from voltage spikes effectively.
Order your STMicroelectronics SMB15F23A series high-power TVS diode today and ensure robust protection for your sensitive electronic circuits with dependable surge handling.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F23A?
You can click on the BUY or RFQ button to purchase SMB15F23A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F23A?
You can download the SMB15F23A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F23A?
STMICROELECTRONICS
