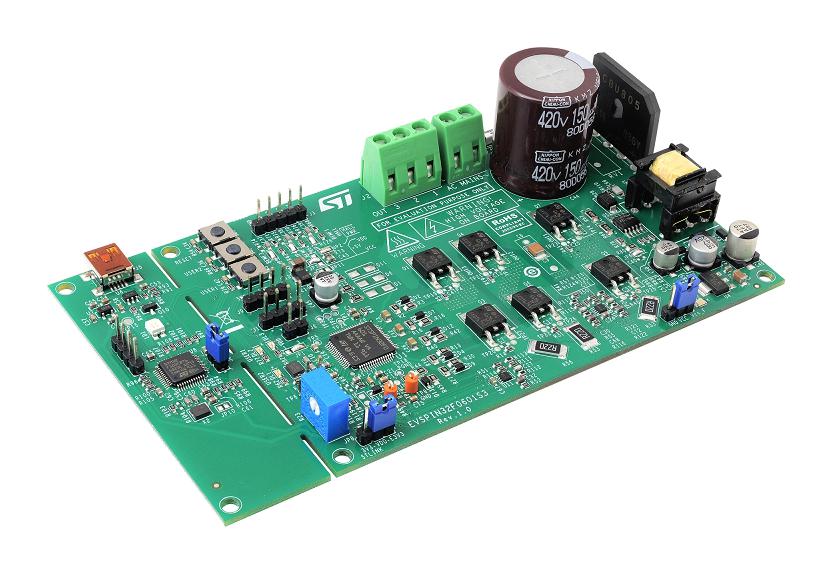

STMICROELECTRONICS EVSPIN32F0601S3 3-Phase Inverter Controller
The EVSPIN32F0601S3 is a comprehensive three-phase inverter evaluation board utilizing the STSPIN32F0601 controller, featuring an embedded STM32 MCU and a 600 V gate driver power stage. Equipped with versatile IGBTs or MOSFETs in DPAK or PowerFlat HV packages, it supports a wide input voltage range from 50 V to 280 V DC/AC. Designed for motor control applications, it offers seamless current sensing with three-shunt topology, digital sensors, bus voltage monitoring, and safeguards like overcurrent protection, making it ideal for industrial drives, home appliances, and automation systems.
STMICROELECTRONICS EVSPIN32F0601S3 3-Phase Inverter Controller Specifications:
- Input Voltage Range: 50 V to 280 V DC/AC
- Power Stage: STGD6M65DF2 IGBTs, 650 V, 6 A
- Controller: STSPIN32F0601 with Cortex-M0 MCU
- Supports DPAK and PowerFlat 8x8 HV packages
- Current Sensing: 3-shunt topology, suitable for sensored or sensorless vector control
- Overcurrent Threshold: 4.5 A peak
- Supply Voltages: +15 V, +3.3 V
- Embedded ST-LINK/V2-1 debugger interface
- Protection: Smart shutdown overcurrent functionality
- CAN interface, digital hall sensors, encoder input
- RoHS compliant
- Application fields include industrial drives, home appliances, air conditioning compressors, and automation systems
Buy the Buy STMicroelectronics 3-Phase Inverter Part Number EVSPIN32F0601S3 Online
Purchase the STMicroelectronics EVSPIN32F0601S3 inverter evaluation board online to access a complete, versatile motor control solution. Featuring a 600 V gate driver power stage, STM32 MCU, and three-shunt current sensing topology, it offers seamless control for PMSMs and other AC motors. Ideal for industrial automation, home appliances, air conditioning, and pumps, this board ensures high efficiency, safety, and reliability. Get easy configuration, overcurrent protection, and full debugging via ST-LINK, enabling fast, productive project development.
Order your STMicroelectronics EVSPIN32F0601S3 today and equip your industrial drives or automation projects with reliable, high-performance inverter control.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVSPIN32F0601S3?
You can click on the BUY or RFQ button to purchase EVSPIN32F0601S3 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVSPIN32F0601S3?
You can download the EVSPIN32F0601S3 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVSPIN32F0601S3?
STMICROELECTRONICS
