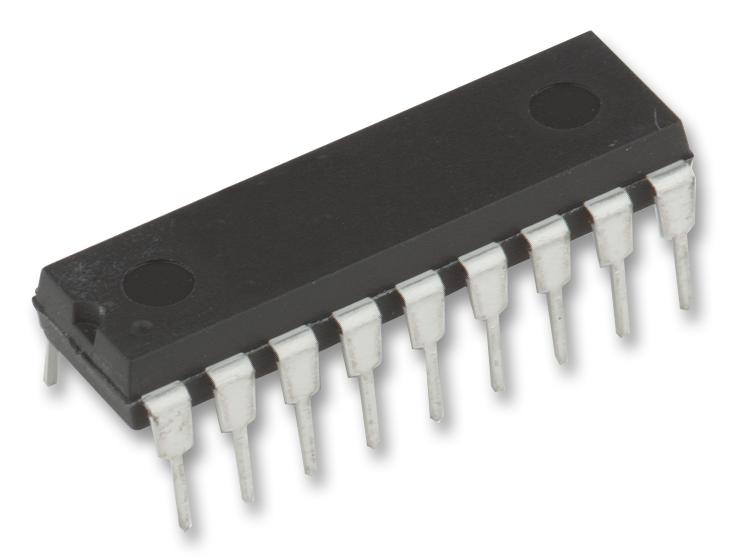

STMICROELECTRONICS L6506 Stepper Motor Controller
The L6506 is a current controller designed for precise current sensing and control in stepping motors and inductive loads. It functions in conjunction with other driver ICs like L298, L7150, and L6114 to form a constant current drive system, managing load current via integrated sensing and pulse width modulation. The device features an on-chip oscillator for setting motor drive frequency, synchronization capabilities for multiple units, and flexible programming of peak current levels. Its robust design ensures reliable operation in motor control applications requiring microstepping, precise current regulation, and synchronized operation across multiple motor phases.
STMICROELECTRONICS L6506 Stepper Motor Controller Specifications:
- Supply Voltage: 6-10 V
- Input Signals: 7 V
- Total Power Dissipation (Tan = 70°C): 1 W
- Junction Temperature: 150°C
- Storage Temperature: -40 to 150°C
- Thermal Resistance Junction-ambient: Max. 80°C/W for DIP18
- Input Voltage Range (Vsense): -0.3 to 3 V
- Quiescent Supply Current: 25 mA at 7 V
- Response Time: 0.8 - 1.5 μs
- Oscillator Frequency Range: 5 - 70 kHz
- Maximum Load Voltage: 7 V
- Maximum Power Dissipation (DIP18): 1 W
- Peak Current Control via Sense Resistor and Reference Voltage
- Synchronization using Sync Pin for multiple devices
- Supports half and full-step drive modes with external control inputs
- Operating temperature range: -40°C to 150°C
