STMICROELECTRONICS STEVALISA108V1 Power Management Module

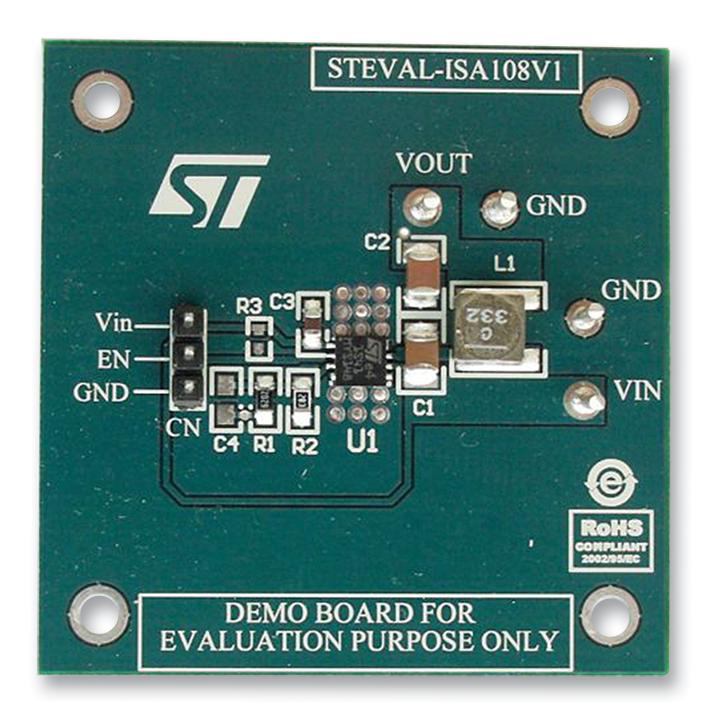

The STEVAL-ISA108V1 is an evaluation demonstration board based on the ST1S41 step-down switching regulator. It features a fixed 850 kHz PWM frequency, adjustable output from 0.8 V to Vix (up to 100% duty cycle), and operates from 4 to 18 V input. Equipped with internal high and low-side MOSFETs, it provides high efficiency for low voltage outputs. Includes soft-start, cycle-by-cycle current limiting, and short-circuit protection, making it ideal for compact, reliable power conversion in various electronic applications.
STMICROELECTRONICS STEVALISA108V1 Power Management Module Specifications:
- Input Voltage Range: 4.0 V to 18 V
- Output Voltage: Adjustable from 0.8 V up to Vix (100% duty cycle)
- Switching Frequency: 850 kHz
- Internal MOSFETs: 95 mΩ high side, 69 mΩ low side
- Package: VFQFPN
- Features: Soft-start, cycle-by-cycle current limiting, short-circuit protection
- Compliance: RoHS
- Operating Temperature: Standard industrial conditions
- Efficiency: Very high due to integrated low Rds(on) MOSFETs
- Application: Power supply for portable electronics, industrial automation, and embedded systems
Buy the STMicroelectronics STEVAL-ISA108V1 – Reliable PWM Power Module for Industrial Applications
Purchase the STMicroelectronics STEVAL-ISA108V1 today to enhance your power management system. With high efficiency, adjustable voltage from 0.8 V, and integrated MOSFETs, this demonstration board offers a compact, reliable solution for industrial and embedded applications. Its fixed 850 kHz PWM switching frequency and soft-start feature ensure smooth operation, making it ideal for designing efficient power supplies. Order now and experience superior performance in your electronic projects and industrial systems.
Get STMicroelectronics STEVAL-ISA108V1 today—built for efficient power regulation with integrated MOSFETs and adjustable output for industrial applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISA108V1?
You can click on the BUY or RFQ button to purchase STEVALISA108V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISA108V1?
You can download the STEVALISA108V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISA108V1?
STMICROELECTRONICS
