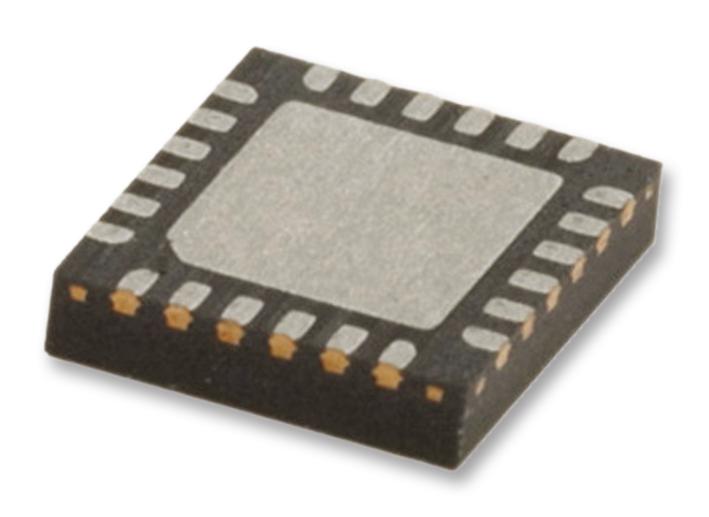

STMICROELECTRONICS LED7706TR LED Driver
The LED7706 is a high-efficiency monolithic LED driver designed for LCD panel backlighting applications. It features a boost converter capable of managing output voltages up to 36 V and six PWM-dimmable current generators, each supporting up to 30 mA. The device includes protections such as over-voltage, thermal shutdown, and LED fault detection, ensuring reliable operation. It supports external synchronization, programmable soft-start, and adjustable switching frequency, making it suitable for various LCD monitors, TVs, and portable device backlights.
STMICROELECTRONICS LED7706TR LED Driver Specifications:
- Input Voltage Range: 4.5 V to 36 V
- Output Voltage: Up to 36 V
- Number of Current Generators: 6
- Maximum Current per Row: 30 mA (programmable)
- Switching Frequency: 250 kHz to 1 MHz (configurable via resistor)
- Integrated Boost Converter with internal MOSFET
- Supports external synchronization for multiple devices
- Dimming: PWM with minimum on-time of 500 ns at 20 kHz
- Protection: Over-voltage, thermal shutdown, LED open/short detection
- Package: VFQFPN-24 (4x4 mm) with exposed pad
- Operating Temperature Range: -40°C to +150°C
- Enhanced thermal management with exposed pad package
