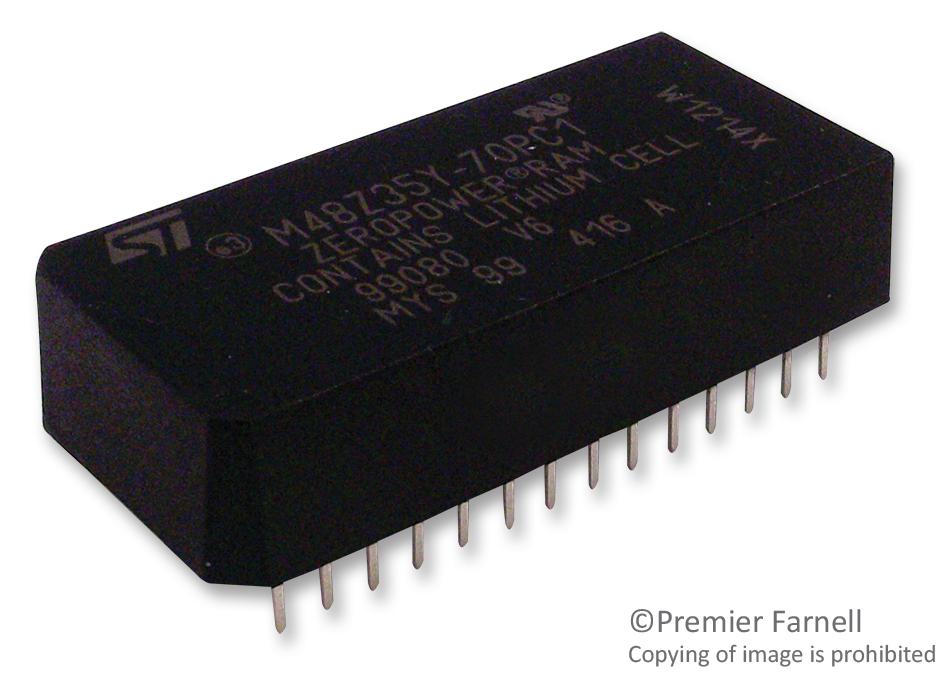

STMICROELECTRONICS M48Z35Y70PC1 non-volatile static RAM
The M48Z35Y is a 256 Kbit (32 Kbit x 8) ZEROPOWER® SRAM with integrated ultra low power SRAM, power-fail control, and a built-in battery. It features automatic power-fail deselect, write protection, and a design compatible with JEDEC standard 32 K x 8 SRAMs. The device includes a battery backup in the SNAPHAT® package, ensuring data retention for at least 10 years at 25°C. Suitable for non-volatile memory applications, it is available in PCDIP28 and SOIC packages with RoHS compliance and lead-free interconnects.
STMICROELECTRONICS M48Z35Y70PC1 non-volatile static RAM Specifications:
- Memory Size: 256 Kbit (32 Kbit x 8)
- Power Supply Voltage: 4.75 to 5.5 V (M48Z35), 4.5 to 5.5 V (M48Z35Y)
- Battery Backup: Maintains data for at least 10 years at 25°C
- Package Options: PCDIP28 with CAPHAT battery, SOIC with SNAPHAT housing
- Operating Temperature: 0°C to 70°C
- Memory Architecture: Static RAM, non-volatile with power-fail control
- Design Compatibility: JEDEC standard 32 K x 8 SRAM
- RoHS Compliant: Yes, lead-free second level interconnect
- Write-cycle Time: 70 ns
- Data Retention Voltage: Vprp = 4.5 to 5.5 V (M48Z35Y), Vprp = 4.75 to 5.5 V (M48Z35)
- Vcc Noise Immunity: Capable of handling voltage spikes with an external bypass capacitor of 0.1 µF
- Protection: Automatic power-fail deselect, write protection and data security features
- Package Mechanical Data: PCDIP28 (Outline: A=8.89-9.65 mm), SOIC (Outline: A=2.34-2.69 mm), SNAPHAT housing for battery
Buy the STMicroelectronics M48Z35Y – Reliable RAM for Industrial Applications
Secure your projects with the reliable and energy-efficient non-volatile static RAM featuring integrated battery backup. The M48Z35Y ensures data retention for over 10 years at 25°C, making it ideal for industrial and embedded systems. Its compact 256 Kbit design offers fast access times, automatic power-fail protection, and compatibility with JEDEC standards. Available in various packages, it guarantees robust performance, RoHS compliance, and easy integration into existing systems. Purchase online now for dependable, long-term memory assurance.
Order your STMicroelectronics M48Z35Y SRAM with integrated battery backup today and give your projects the dependable data security they deserve.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS M48Z35Y70PC1?
You can click on the BUY or RFQ button to purchase M48Z35Y70PC1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part M48Z35Y70PC1?
You can download the M48Z35Y70PC1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of M48Z35Y70PC1?
STMICROELECTRONICS
