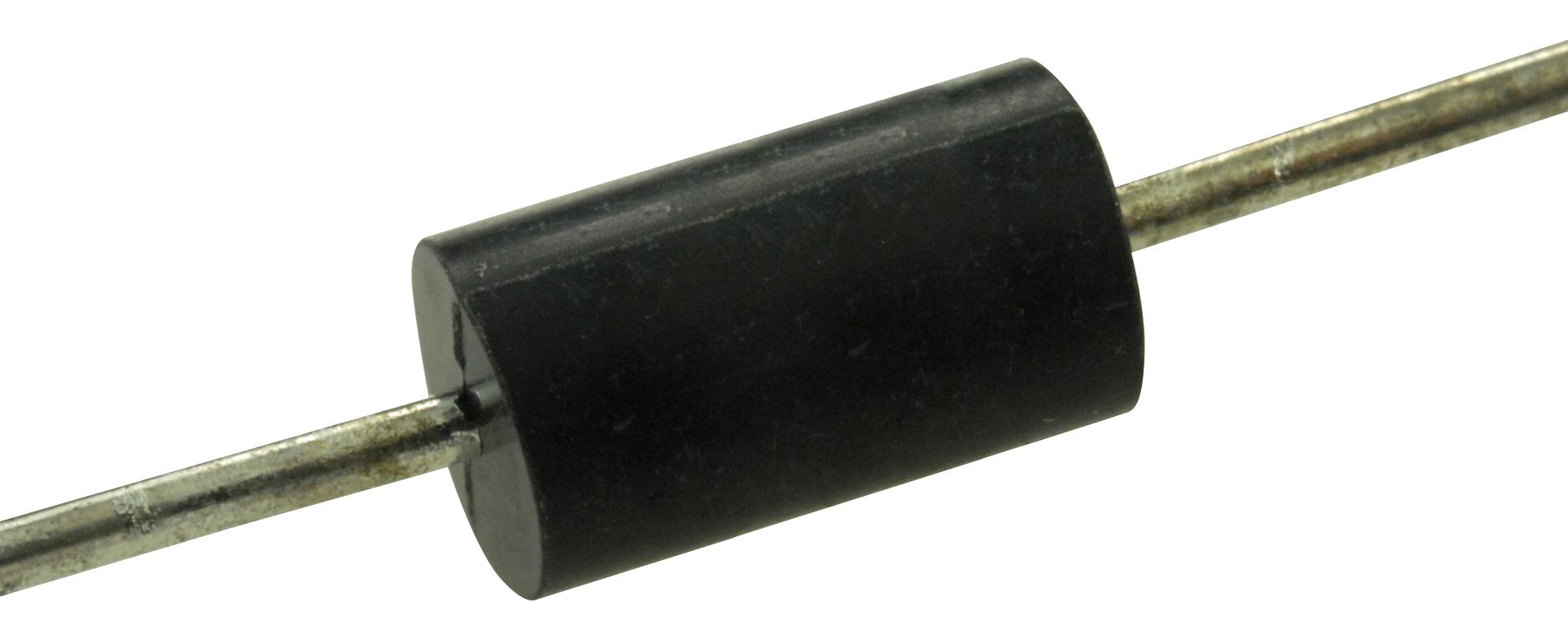

STMICROELECTRONICS BZW04376BRL Transient Voltage Suppression Diode
The STMICROELECTRONICS BZW04-376BRL is a bidirectional Transil diode designed to provide robust overvoltage protection for sensitive electronic components. Its instantaneous response to transient voltage surges makes it ideal for safeguarding MOS Technology and low-voltage ICs. The diode's clamping action effectively limits voltage spikes, preventing damage and ensuring reliable system operation. It is characterized by a peak pulse power dissipation of 400W and a fast response time, making it suitable for a wide range of industrial applications where voltage transients are a concern.
STMICROELECTRONICS BZW04376BRL Transient Voltage Suppression Diode Specifications:
- Peak Pulse Power Dissipation: 400 W (10/1000µs)
- Stand-off Voltage Range: 5.8V to 376 V
- Uni and Bidirectional Types: Yes
- Clamping Factor: Low
- Response Time: Fast
- UL Recognized: Yes
- Power Dissipation on Infinite Heatsink: 1.7 W
- Non Repetitive Surge Peak Forward Current: 30 A
- Storage Temperature Range: -65 to +175 °C
- Maximum Junction Temperature: 175 °C
- Maximum Lead Temperature: 230 °C
- Junction to Leads Resistance: 60 °C/W
- Junction to Ambient Resistance: 100 °C/W
- Leakage Current @ VRM: Varies (see table)
- Breakdown Voltage: Varies (see table)
- Clamping Voltage: Varies (see table)
- Voltage Temperature Coefficient: -10-4/°C
- Forward Voltage Drop: Varies (see table)
- Capacitance: Varies (see table)
Buy the BZW04-376BRL STMICROELECTRONICS Transient Voltage Suppression Diode | myMectronic
Purchase the STMICROELECTRONICS BZW04-376BRL securely and reliably online for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy STMICROELECTRONICS BZW04376BRL?
You can click on the BUY or RFQ button to purchase BZW04376BRL from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part BZW04376BRL?
You can download the BZW04376BRL datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of BZW04376BRL?
STMICROELECTRONICS
