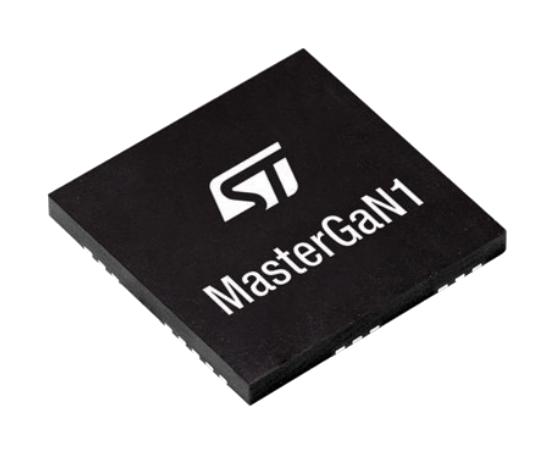

STMICROELECTRONICS MASTERGAN1 GaN Power Driver
The MASTERGAN1 is a high-performance power system-in-package that integrates a half-bridge gate driver with two enhancement mode GaN transistors. Featuring 650V breakdown voltage and 150 mΩ Rpsion, it supports high power applications like chargers, high-voltage converters, and solar power systems. It includes UVLO protection, internal bootstrap diode, and interlocking functions for safety and efficiency. The compact 9x9 mm QFN package allows easy integration into demanding industrial and power management designs, ensuring reliable operation from -40°C to 125°C.
STMICROELECTRONICS MASTERGAN1 GaN Power Driver Specifications:
- Device Type: High-voltage half-bridge gate driver with GaN transistors
- Transistor Breakdown Voltage: 650 V
- Rpsion: 150 mΩ
- Drain Current: up to 10 A
- Operational Temperature Range: -40°C to 125°C
- Package: QFN 9x9 mm, 31 leads, pitch 0.6 mm
- Bootstrap Voltage: 0 to 65 V
- Logic Input Voltage: 0 to 20 V
- UVLO Protection: Yes, on high and low-side
- Thermal Resistance Junction to Exposed Pad: 175 °C/W
- Recommended Operating Voltage VCC: 4.75 to 95 V
- Application: High-voltage converters, solar power, chargers and adapters
- Package Material: ECOPACK compliant for environmental standards
- Switching Frequency: Up to 500 kHz
- Includes integrated bootstrap diode and interlocking for cross-conduction prevention
Buy the Buy STMicroelectronics MASTERGAN1 Part Number MASTERGAN1 Online
Enhance your power systems with the MASTERGAN1 GaN half-bridge driver featuring integrated transistors, UVLO protection, and compact design. Perfect for high-voltage converters, solar applications, and chargers, this device offers reliable operation from -40°C to 125°C. Its optimized package simplifies PCB integration, reduces bill of material, and improves thermal management. Designed for fast switching up to 500 kHz, the MASTERGAN1 ensures high efficiency and safety in demanding industrial environments. Purchase online today to upgrade your power solutions with this advanced, space-saving device.
Get STMicroelectronics MASTERGAN1 today—built for high-power conversion and reliable long-lasting performance.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS MASTERGAN1?
You can click on the BUY or RFQ button to purchase MASTERGAN1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part MASTERGAN1?
You can download the MASTERGAN1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of MASTERGAN1?
STMICROELECTRONICS
