STMICROELECTRONICS SMB15F11A Surge Protection Diode
The SMB15F11A series offers high-power TVS diodes designed for sensitive circuit surge protection. Featuring planar technology, these unidirectional devices operate up to 175°C junction temperature, with a stand-off voltage range from 5 V to 64 V. They deliver peak pulse power of 1500 W (10/1000 ps) and 10 kW (8/20 us), ensuring excellent surge handling capabilities. The compact 1 mm flat package with matte tin plating makes them ideal for high-reliability, space-constrained applications, complying with UL94 VO and other industry standards for safety and performance.
STMICROELECTRONICS SMB15F11A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Stand-off voltage range: 5 V to 64 V
- Operating junction temperature: -55°C to +175°C
- Maximum lead soldering temperature: 260°C for 10 seconds
- Leakage current: 0.2 UA at 25°C and 1 UA at 85°C
- Peak pulse voltage contact discharge: 30 kV
- Peak pulse power dissipation: 1500 W (10/1000 ps)
- Material: Matte tin-plated leads
- Standard compliance: UL94 VO, J-STD-020 MSL level 1, IEC 61000-4-4 level 4
- Package outline: JEDEC registered SMB Flat package
- Maximum operating Tj: 175°C
- Maximum soldering temperature: 260°C for 10 seconds

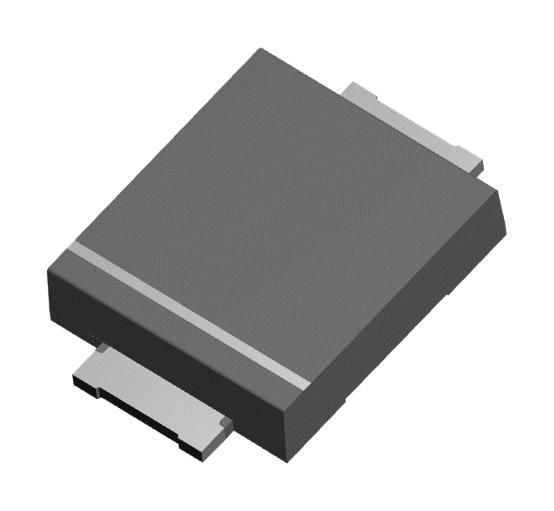

Buy the Buy STMicroelectronics SMB15F11A Part Number Online
Order the high-power unidirectional TVS diode, SMB15F11A, from our online store. Designed for sensitive circuit protection, it offers peak pulse power of 1500 W, wide stand-off voltage range from 5V to 64V, and operates reliably up to 175°C junction temperature. With compact flat package and matte tin plating, it meets industry standards like UL94 VO and IEC 61000-4-4. Perfect for space-constrained, high-reliability applications needing guaranteed surge suppression and long-term stability.
Get STMicroelectronics SMB15F11A today—built for high surge protection and long-lasting reliability.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F11A?
You can click on the BUY or RFQ button to purchase SMB15F11A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F11A?
You can download the SMB15F11A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F11A?
STMICROELECTRONICS
