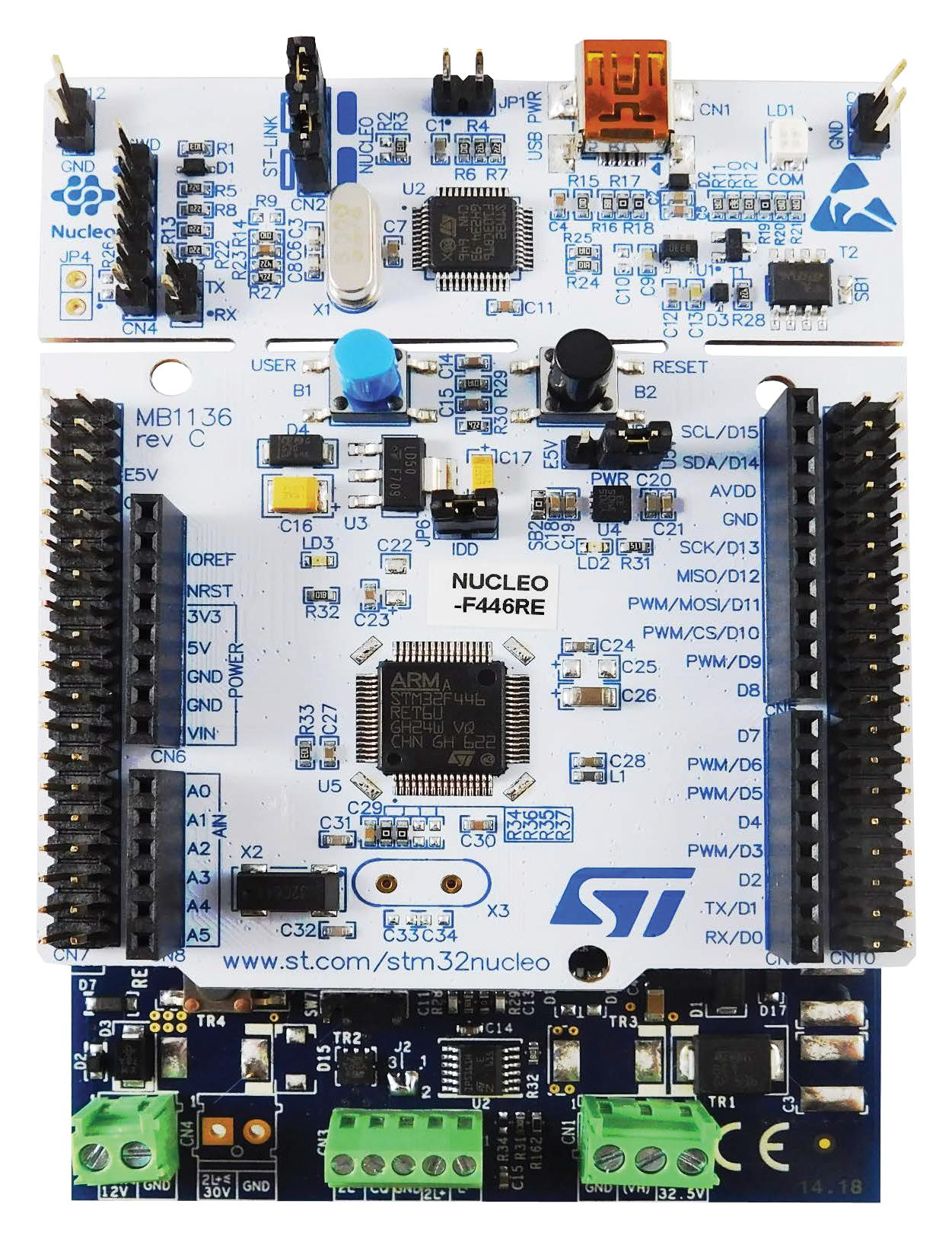

STMICROELECTRONICS PNUCLEOIOM01M1 IO-Link Master Module
The P-NUCLEO-IOM01M1 is an STM32 Nucleo pack designed for IO-Link master applications. It combines the STEVAL-IOMO01V1, featuring an L6360 PHY layer for IO-Link communication, with the STM32F446RE microcontroller for high-performance processing. This evaluation kit supports IO-Link v1.1 stack, offers multiple interfaces including SPI and UART, and includes robust diagnostic and protection features like overload and overheating safeguards. With onboard LEDs, connectors, and a wide operating voltage range, it efficiently evaluates IO-Link devices and master functions in industrial automation setups.
STMICROELECTRONICS PNUCLEOIOM01M1 IO-Link Master Module Specifications:
- Processor: STM32F446RET6 32-bit ARM Cortex-M4 core, 180 MHz max.
- Memory: 512 KB Flash, 128 (+4) KB RAM
- Power Supply: 18 to 32.5V operating voltage
- Communication: IO-Link v1.1, SPI, UART, USB Virtual COM
- Physical Layer: L6360 PHY, supports 1 or 4 port configurations
- Protection: overload, overheating, ground, wire break protections
- Additional Switches: CQ (push-pull), high side switches, high load switch (IPS1671H)
- Certification: CE, RoHS, China RoHS compliant, EMC IEC61000-4 series
- Package Size: QFN-26L, 3.5x5x1 mm
- Connectors: ST morpho, support for expansion and diagnostics
- Indicators: LEDs for status and diagnostics
- Interfaces: PC, UART, SPI (slave)
Buy the STMicroelectronics Series Nucleo IO-Link Master: PNUCLEOIOM01M1
Discover the STMicroelectronics IO-Link Master Module PNUCLEOIOM01M1, an essential solution for industrial automation. Featuring a high-performance STM32F446RE microcontroller, IO-Link v1.1 support, multiple communication interfaces, diagnostic LEDs, and comprehensive protections. This evaluation kit enables seamless testing and development of IO-Link applications, ensuring durability and advanced diagnostics. Whether you need to build multi-port setups or evaluate IO-Link devices, this module offers superior robustness and connectivity. Order online now to streamline your industrial communication systems and boost operational efficiency.
Order your STMicroelectronics Series Nucleo IO-Link Master PNUCLEOIOM01M1 today and enhance your industrial automation projects with reliable, high-performance IO-Link capabilities.
