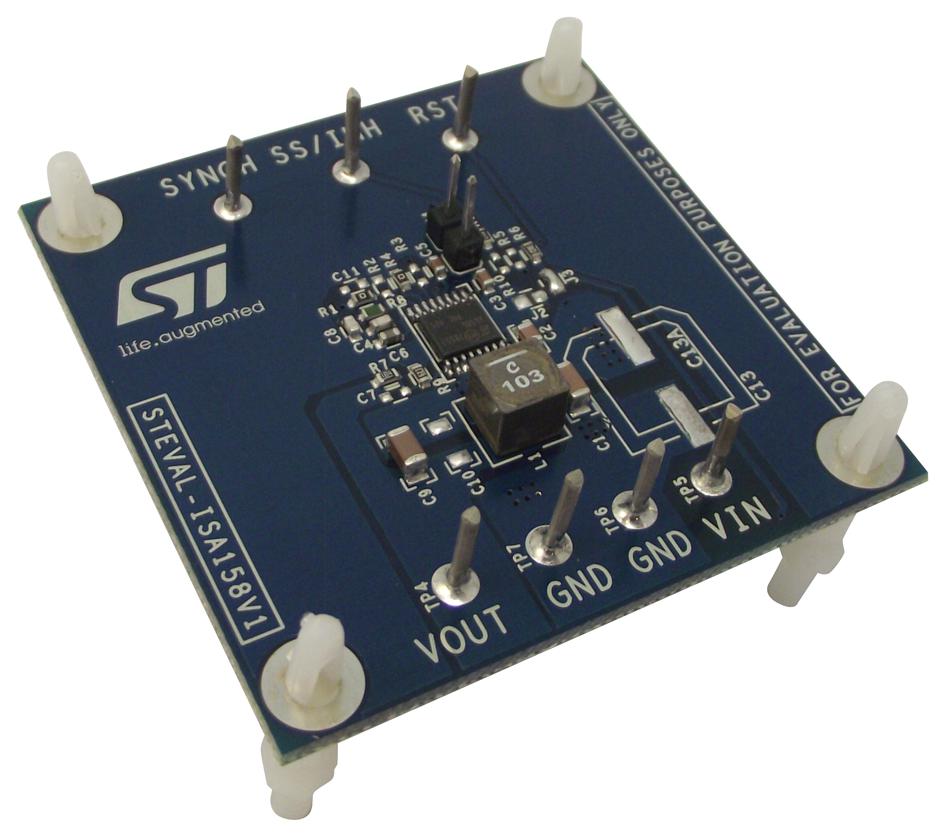

STMICROELECTRONICS STEVALISA158V1 Switching Regulator Module
The STEVAL-ISA158V1 is an evaluation board based on ST's A6986, a 38 V, 2 A synchronous step-down switching regulator designed for automotive and battery-powered applications. It features adjustable output voltage from 0.85 V to input voltage, low quiescent current of 30 µA in low consumption mode, and low noise operation suitable for automotive systems. Additional benefits include embedded output voltage supervisor, synchronization, soft-start control, internal current limiting, overvoltage protection, and output voltage sequencing, providing reliable power management for automotive electronics.
STMICROELECTRONICS STEVALISA158V1 Switching Regulator Module Specifications:
- Input Voltage Range: 4 V to 38 V
- Output Voltage Adjustable: 0.85 V to VIN
- Maximum Output Current: 2 A
- Quiescent Current: 30 µA in low consumption mode
- Switching Frequency: 250 kHz to 2 MHz adjustable
- Embedded Voltage Supervisor and Synchronization
- Soft-start Time: Adjustable
- Protection Features: Overvoltage, internal current limiting, thermal shutdown
- Thermal Shutdown: Yes
- RoHS Compliant
- PCB Components: 10 µF and 47 µF capacitors, inductors 4.7 µH, and various resistors and capacitors as per BOM
- Operating Temperature: -40°C to +125°C
- Package: Evaluation board with open headers for testing versatility
- Designed for automotive, battery-powered, and low-noise applications
Buy the Buy STMicroelectronics A6986 Part Number STEVALISA158V1 Online
Purchase the STMicroelectronics STEVAL-ISA158V1 switching regulator evaluation board now to enhance your automotive projects. This module provides adjustable voltage regulation up to 38 V with 2 A maximum current, ideal for automotive and battery-powered applications. Featuring low quiescent current, low noise operation, and comprehensive protection features such as overvoltage and thermal shutdown, it ensures reliable power management. Easy to integrate with open headers and a variety of passive components from the BOM, this evaluation board helps you develop and test high-performance power solutions efficiently.
Order your STMicroelectronics STEVAL-ISA158V1 evaluation board today and experience reliable, low-noise power regulation for automotive and battery systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALISA158V1?
You can click on the BUY or RFQ button to purchase STEVALISA158V1 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALISA158V1?
You can download the STEVALISA158V1 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALISA158V1?
STMICROELECTRONICS
