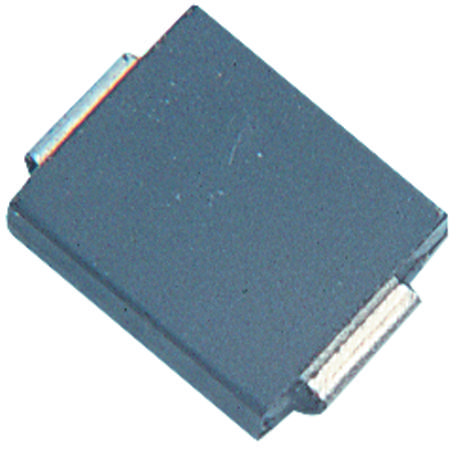

STMICROELECTRONICS SMAJ188ATR Transient Voltage Suppressor Diode
The SMAJ188A-TR is a surface-mount unidirectional Transient Voltage Suppressor diode designed to protect sensitive electronic equipment from electrostatic discharges and electrical overstress. It complies with IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, and MIL STD 883, method 3015. Planar technology ensures reliability in high-end gear and SMPS by offering low leakage current and high junction temperature stability. Operating at a maximum junction temperature of 150°C, it is ideal for power management and surge protection applications, providing stable, long-term performance.
STMICROELECTRONICS SMAJ188ATR Transient Voltage Suppressor Diode Specifications:
- Peak pulse power: 400 W (10/1000 us), 2.3 kW (8/20 us), high power at Tj max: 270 W (10/1000 us)
- Stand off voltage range: 5 V to 188 V
- Maximum operating junction temperature: 150°C, storage temperature: -65°C to +150°C
- Thermal resistance junction to leads: 30 °C/W, junction to ambient: 120 °C/W
- Peak pulse current: up to 162 A (SMAJ100A/CA), clamping voltage varies with surge level
- Device compliance: IEC 61000-4-2 level 4, contact discharge 8 kV, air discharge 15 kV
- Package: JEDEC DO-214AC molded plastic, solderable, in accordance with IPC 7531
Buy the STMicroelectronics SMAJ188A-TR – Reliable Surge Suppressor for Industrial Applications
Secure your electronics with the SMAJ188A-TR, a high-quality unidirectional TVS diode designed for surge and electrostatic discharge protection. This surface-mount device offers low leakage current and high junction temperature stability, ensuring reliable operation in power management circuits, high-end equipment, and switch-mode power supplies. Withstanding peak pulse powers up to 400 W and operating temperatures up to 150°C, it provides excellent surge suppression capabilities. Perfect for industrial and sensitive electronic applications, it guarantees long-term durability and protection against electrical overstress.
Buy STMicroelectronics SMAJ188A-TR now and experience unmatched reliability, low leakage, and high stress protection for your power and electronic systems.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMAJ188ATR?
You can click on the BUY or RFQ button to purchase SMAJ188ATR from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMAJ188ATR?
You can download the SMAJ188ATR datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMAJ188ATR?
STMICROELECTRONICS
