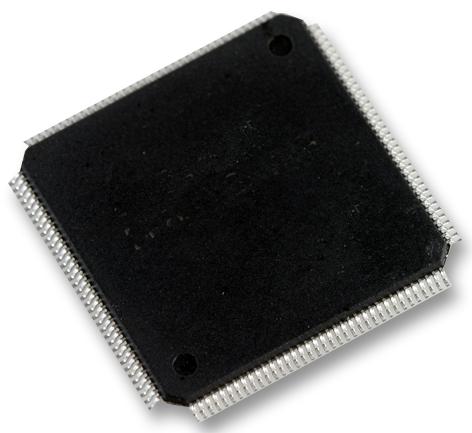

STMICROELECTRONICS STM32F407ZET6 High-Speed Microcontroller
The STM32F407 family is a high-performance 32-bit microcontroller based on the ARM Cortex-M4F core operating at up to 168 MHz. It features up to 1 MB of Flash memory, 192 KB of SRAM, integrated Ethernet MAC, USB OTG high-speed/full-speed controllers, camera interface, multiple ADCs, DACs, and advanced timers suitable for industrial, audio, and communication applications. The device supports multiple peripherals and a flexible memory controller, ensuring reliable operation in diverse environments with low Power modes, RTC backup, and extensive I/O options for embedded systems design.
STMICROELECTRONICS STM32F407ZET6 High-Speed Microcontroller Specifications:
- Core: ARM Cortex-M4F, 168 MHz
- Flash Memory: Up to 1 MB
- SRAM: Up to 192 KB
- Ethernet MAC: Yes
- USB OTG: Full-speed and High-speed with ULPI
- Camera Interface: Yes, up to 54 Mbyte/s
- ADC: 3 x 12-bit, up to 16 external channels
- DAC: 2 x 12-bit
- Timers: 12 general-purpose, 2 advanced-control, 2 basic
- Operating Voltage: 1.8V to 3.6V
- Low power modes: Sleep, Stop, Standby
- RTC & Backup SRAM: Yes, 4 KB + 20 backup registers
- Package Options: LQFP64, LQFP100, LQFP144, LQFP176, UFBGA176, WLCSP90
- Temperature Range: -40°C to +105°C
- Clock Sources: External 4-26 MHz crystal, 32.768 kHz crystal, internal RC oscillators
- Memory Protection Unit: Yes, up to 8 regions
- Debug: SWD, JTAG
- Connectivity: USARTs, SPI, I2C, CAN, Ethernet, USB
Buy the STMicroelectronics STM32F407ZET6 – Reliable High-Speed Microcontroller for Industrial Applications
Procure the STM32F407ZET6 online today and leverage its high-performance ARM Cortex-M4F core, extensive memory options, Ethernet, USB, and advanced peripherals. Engineered for demanding industrial applications, this microcontroller ensures reliable operation across a wide temperature range with low power consumption modes, RTC backup, and comprehensive connectivity options. Ideal for embedded systems demanding real-time processing, multimedia handling, or industrial automation. Secure your development now and enjoy seamless integration, robust features, and proven quality from STMicroelectronics.
Buy STMicroelectronics STM32F407ZET6 now and experience unmatched performance and versatility for your industrial, multimedia, and communication projects.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STM32F407ZET6?
You can click on the BUY or RFQ button to purchase STM32F407ZET6 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STM32F407ZET6?
You can download the STM32F407ZET6 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STM32F407ZET6?
STMICROELECTRONICS
