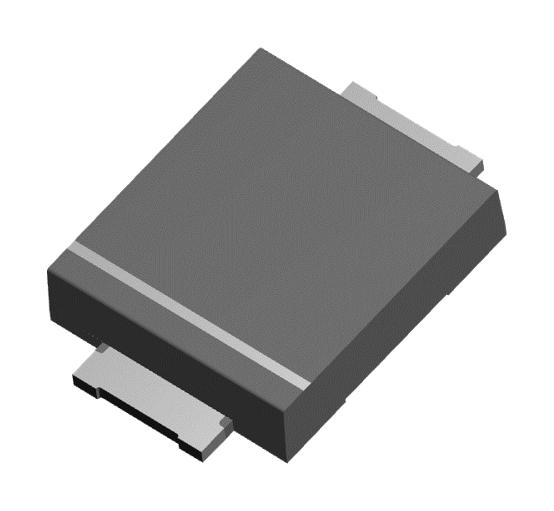

STMICROELECTRONICS SMB15F22A Surge Protector
The SMB15F22A series surge protective device features a unidirectional design with a peak pulse power of 1500 W (10/1000 ps) and a flat, thin package measuring 1 mm. It provides stand-off voltages from 5 V to 64 V, low leakage current of 0.2 UA at 25 °C, and operates at maximum junction temperatures of 175°C. Compliant with UL94VO, J-STD-020 MSL level 1, and IEC standards, it utilizes planar technology for high reliability and stability in protecting sensitive circuits from surges caused by lightning or switching transients.
STMICROELECTRONICS SMB15F22A Surge Protector Specifications:
- Peak pulse power: 1500 W (10/1000 ps)
- Stand-off voltage range: 5 V to 64 V
- Maximum leakage current: 0.2 UA at 25 °C
- Maximum junction temperature: 175°C
- Operating temperature: -55°C to +175°C
- Soldering lead temperature: 260°C for 10 seconds
- Package: SMB Flat, size 1 mm thickness
- Lead finishing: matte tin plating
- Standards: UL94VO, J-STD-020 MSL level 1, IEC 61000-4-4 and 61000-4-2
Buy the Buy STMicroelectronics SMB15F22A Part Number SMB15F22A Online
Purchase the STMicroelectronics SMB15F22A surge protector now to ensure your sensitive electronics are safeguarded against voltage surges. Designed with a flat, thin profile of just 1 mm, it provides reliable high peak pulse power of 1500 W and offers a wide stand-off voltage range from 5 V to 64 V. Its low leakage current, operating at maximum junction temperatures of 175°C, makes it ideal for high-reliability applications in industrial, automotive, and telecommunication systems. Secure your electronics today with this compact and efficient surge protection device.
Get STMicroelectronics SMB15F22A today—built for high power surge protection with compact flat packaging and reliable high-temperature operation.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F22A?
You can click on the BUY or RFQ button to purchase SMB15F22A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F22A?
You can download the SMB15F22A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F22A?
STMICROELECTRONICS
