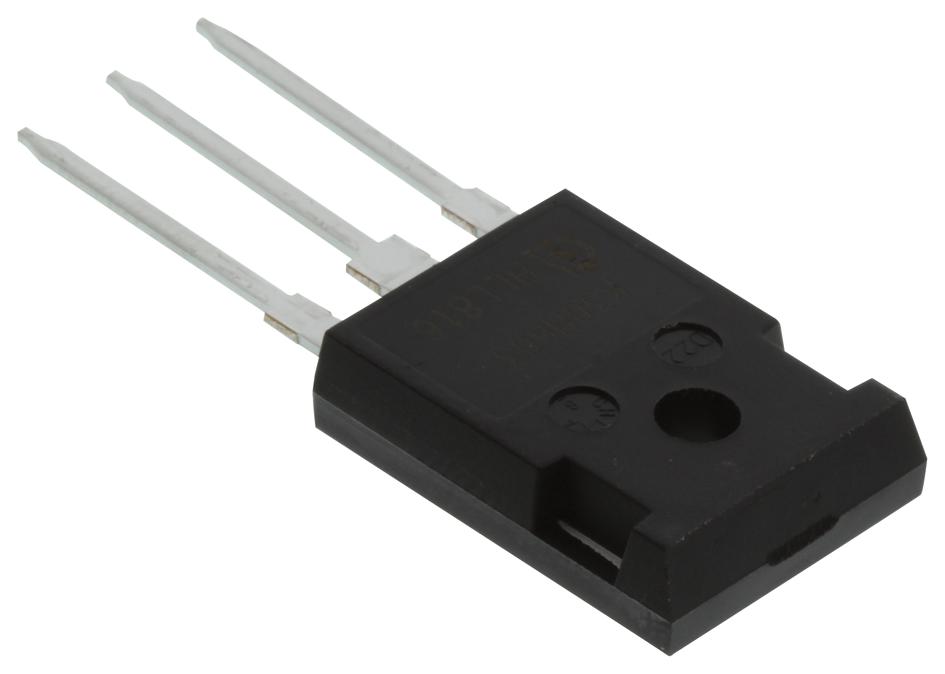

STMICROELECTRONICS STGWA30IH65DF High-Voltage IGBT Module
The IGBT 650 V soft-switching series is designed with an advanced trench gate field-stop structure, optimized for efficient soft commutation applications. Its features include low thermal resistance, minimized tail current, and a low drop forward diode, making it ideal for resonant converters, induction heating, and microwave ovens. The TO-247 long leads package enhances heat dissipation and ease of installation. With a maximum junction temperature of 175°C and high pulsed current capacity, it offers reliable operation and excellent electrical performance in demanding industrial environments.
STMICROELECTRONICS STGWA30IH65DF High-Voltage IGBT Module Specifications:
- Collector-emitter voltage: 650 V
- Continuous collector current at 25°C: 60 A
- Maximum junction temperature: 175 °C
- Thermal resistance junction-case: 0.83 K/W
- Package: TO-247 long leads
- Operating temperature range: -55°C to 175°C
- Gate-emitter voltage: +20 V
- Pulsed collector current: 90 A
- Total power dissipation at 25°C: 180 W
- Storage temperature: -55°C to 150°C
Buy the STMicroelectronics STGWA30IH65DF – Reliable Soft-Switching IGBT for Industrial Applications
Purchase the high-performance 650 V IGBT module online today to maximize efficiency and reliability in your industrial applications. Designed with an advanced trench gate structure, this component offers optimized conduction, low switching losses, and excellent thermal management. Suitable for resonant converters, induction heating, and microwave ovens, it ensures consistent performance under demanding operating conditions. Featuring low thermal resistance and robust electrical ratings, this IGBT module enhances your automation and power control systems, providing a dependable solution for high-power switching needs.
Get STMicroelectronics STGWA30IH65DF today—built for precision and long-lasting durability in industrial power switching.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STGWA30IH65DF?
You can click on the BUY or RFQ button to purchase STGWA30IH65DF from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STGWA30IH65DF?
You can download the STGWA30IH65DF datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STGWA30IH65DF?
STMICROELECTRONICS
