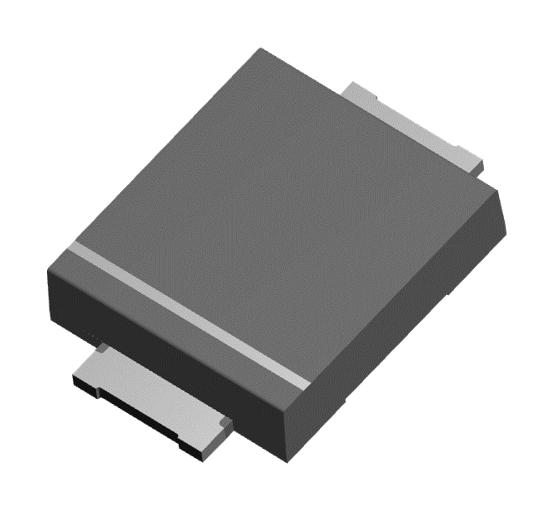

STMICROELECTRONICS SMB15F28A Surge Protection Diode
The SMB15F28A series are unidirectional TVS diodes offering peak pulse power of 1500 W with a flat, thin package profile of just 1 mm. Ideal for circuit protection, these devices feature stand-off voltages from 28 V, low leakage currents of 0.2 μA at 25°C, and high junction temperature tolerance up to 175°C. Compliant with standards like UL94 VO and JESD-020, they provide reliable surge protection for sensitive electronics, supporting high power capability (up to 1100 W at Tj max) and excellent thermal management with matte tin plating. Designed for robust automotive and industrial applications.
STMICROELECTRONICS SMB15F28A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps), 10 kW (8/20 μs)
- Package: Flat, thin, 1 mm height, JEDEC outline
- Stand-off voltage range: 5 V to 64 V
- Maximum operating junction temperature: 175°C
- Leakage current: 0.2 μA at 25°C, 1 μA at 85°C
- Peak pulse current: 30 kV contact, 30 kV air discharge IEC 61000-4-2
- Peak pulse power dissipation: 1500 W (initial), max 1100 W at Tj max
- Lead finish: Matte tin plating
- Standards: UL94 VO, J-STD-020 MSL level 1, JESD 22-B102, IEC 61000-4-4 level 4
- Maximum lead temperature during soldering: 260°C for 10 seconds
- Operating temperature range: -55°C to +175°C
Buy the STMicroelectronics SMB15F28A – Reliable Surge Protection for Industrial Applications
Purchase the STMicroelectronics SMB15F28A surge protection diode online today. Its high surge capacity, compact flat package, and low leakage current make it ideal for safeguarding sensitive electronic circuits against voltage spikes. Designed to withstand high peak pulse power and high temperatures, this diode ensures durability and reliability in industrial, automotive, and consumer electronics. Easy to integrate with recommended soldering profiles, it offers long-term stability, complying with strict standards for automotive and industrial environments. Secure your electronic components with this robust surge protector now.
Get STMicroelectronics SMB15F28A today—built for precision and long-lasting durability in circuit surge protection.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F28A?
You can click on the BUY or RFQ button to purchase SMB15F28A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F28A?
You can download the SMB15F28A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F28A?
STMICROELECTRONICS
