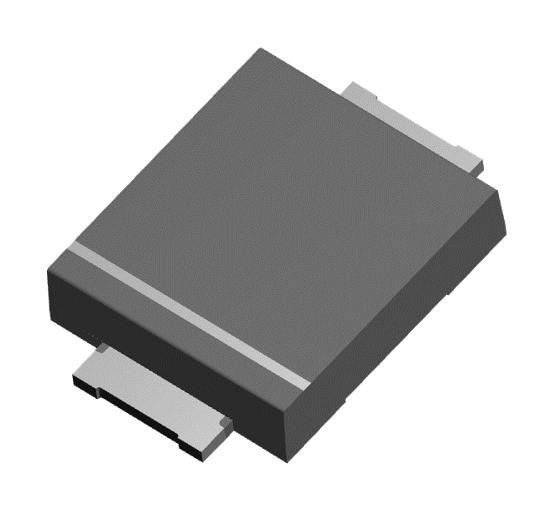

STMICROELECTRONICS SMB15F48A TVS Diode
The SMB15FxxA series offers low-induction, flat and thin TVS diodes in a 1 mm SMB Flat package, designed to protect sensitive circuits from high-energy surges. With peak pulse power of 1500 W (10/1000 ps) and 10 kW (8/20 us), they feature a stand-off voltage range from 5 V to 64 V, low leakage currents, and high junction temperature ratings up to 175°C. Compliant with UL94, JEDEC, and IEC standards, these unidirectional TVS diodes provide reliable transient suppression for industrial and communication electronics, ensuring long-term circuit protection.
STMICROELECTRONICS SMB15F48A TVS Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Stand-off voltage range: from 5 V to 64 V
- Operating junction temperature max: 175°C
- Maximum leakage current: 0.2 UA at 25 °C and 1 μA at 85 °C
- Peak pulse current: 30 kV (contact and air discharge) IEC 61000-4-2
- Units: Flat, thin package: 1 mm height with JEDEC registration
- Lead finishing: matte tin plating
- Compliance: UL94V-0, J-STD-020, IEC 61000-4-4 (level 4), IEC 61000-4-2
- Solderability: Meets MIL-STD-750, method 2026 standards
- Operating temperature: -55°C to +175°C
- Peak power dissipation at Tj max.: 1500 W
- Mechanical data: SM8 Flat package outline with dimensions compliant to industry standards
- Environmental: ECOPACK compliant, available in tape and reel packaging
Buy the STMicroelectronics SMB15F48A – Reliable Surge Protection for Industrial Applications
Secure your sensitive electronic circuits with the SMB15F48A TVS diode from STMicroelectronics. Designed for high-energy surge protection, this unidirectional diode offers peak pulse power of 1500 W, low leakage current, and wide stand-off voltage from 5 V to 64 V. Its compact 1 mm flat package ensures easy integration into dense PCB layouts. Certified by UL and IEC standards, it guarantees long-term reliability and excellent transient suppression for industrial, communication, and consumer electronic applications. Order online today and safeguard your equipment effectively.
Buy STMicroelectronics SMB15F48A now and experience unmatched surge suppression and circuit reliability in industrial environments.
