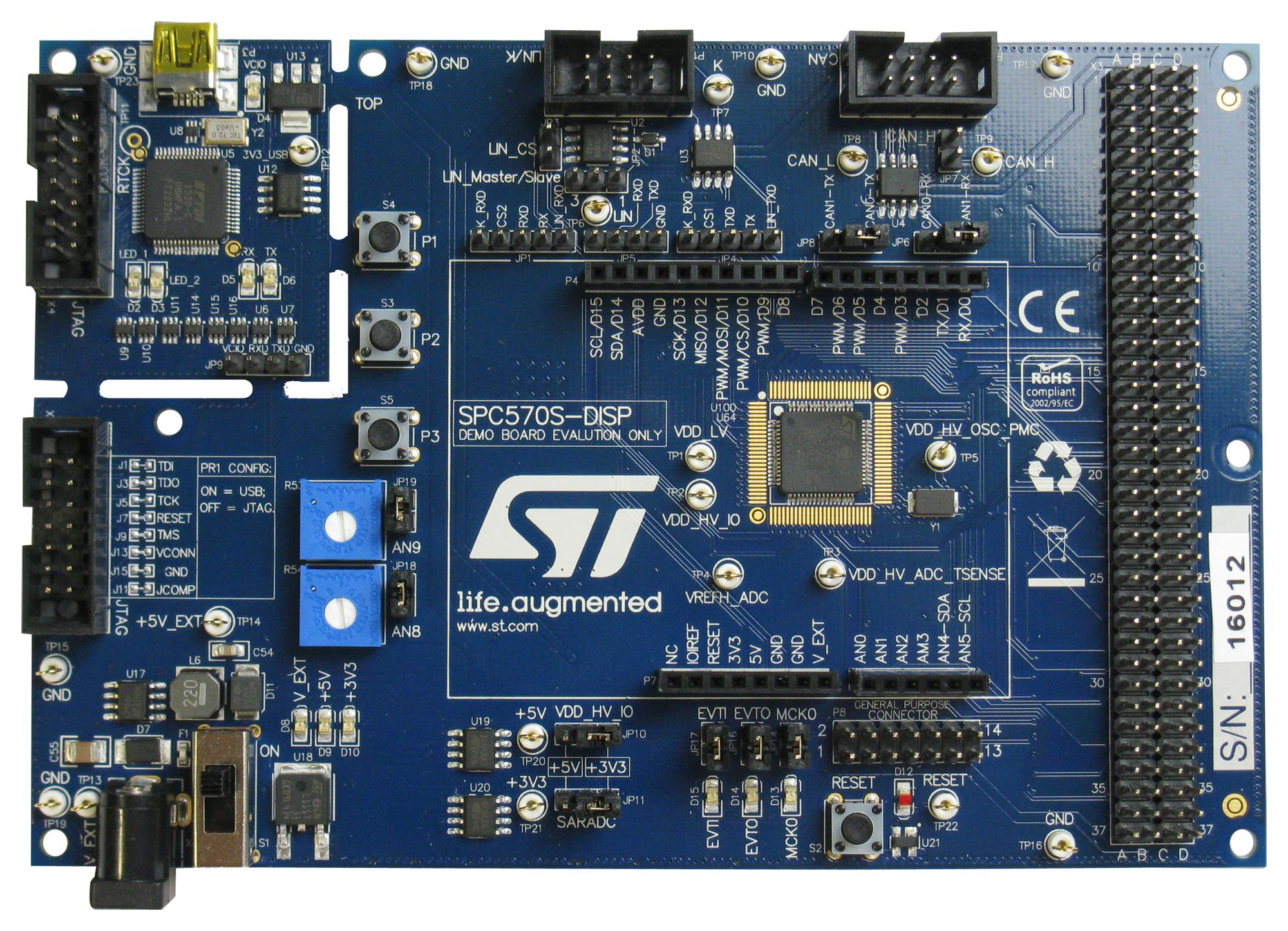

STMICROELECTRONICS SPC570SDISP Discovery Microcontroller Board
The SPC57S-Discovery evaluation board enables comprehensive exploration of SPC57 S Line Power Architecture microcontrollers with access to CPUs, peripherals, CAN, UART, JTAG, K-Line, and LIN interfaces. It features a dual-core 32-bit CPU with an 80MHz main processor and a safety checker, onboard USB-JTAG debugger, power supply via USB or external 12V PSU, user buttons, LEDs, potentiometers, and extensive extension headers for prototyping. Ideal for automotive and industrial safety applications, it includes free software support, demo firmware, and development tools for quick evaluation and robust project development.
STMICROELECTRONICS SPC570SDISP Discovery Microcontroller Board Specifications:
- CPU: 32-bit dual-core with Core_0 main at 80MHz and Checker core
- Memory: 256 kByte code size debugging license included
- Power Supply: USB (5 V) or external +12 V PSU
- Connectors: USB mini-B, 2x7 JTAG interface, 4x37 pin extension headers
- Onboard Debugger: USB-JTAG PLS debugger
- Crystal Frequency: 40 MHz
- Board Size: 105 x 150 mm
- Peripherals: User buttons, LEDs, 2 potentiometers for ADC evaluation
- Additional I/O: Multiple extension headers for prototyping
- Firmware Support: Preloaded demo firmware, SPC5Studio support, free GCC compiler
- Application Focus: Automotive safety, industrial safety up to ASIL-D per ISO 26262
- Supported Protocols: CAN, UART, K-Line, LIN, JTAG
- Target: Automotive and industrial safety applications with full access to CPU and peripherals
Buy the STMicroelectronics Series Discovery Microcontroller: SPC570S-DISP
Discover the powerful SPC57S-Discovery evaluation board, designed for automotive and industrial safety applications. Featuring dual-core 32-bit CPU, extensive I/O, onboard debug tools, and free demo firmware, it provides a comprehensive platform for rapid prototyping and development. Easily connect to peripherals via extension headers, and develop with free SPC5Studio software, supporting real-time OS and low-level drivers. Perfect for engineers seeking a reliable and flexible solution for safety-critical projects, this board ensures seamless integration and efficient project execution.
Order your STMicroelectronics Series Discovery SPC570S-DISP evaluation board today and experience the versatile, safety-rated microcontroller platform for automotive projects.
