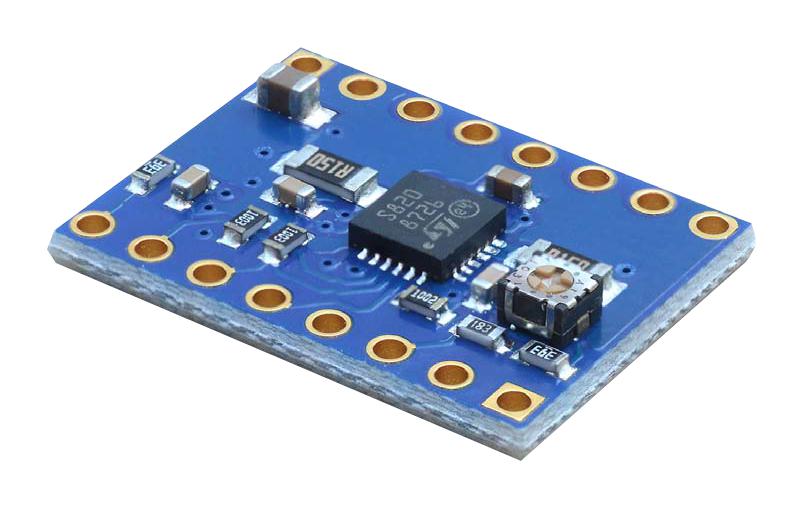

STMICROELECTRONICS EVALSP820XS Stepper Motor Driver Board
The EVALSP820-XS is a compact and easy-to-use evaluation board designed for the STSPIN820 stepper motor driver, rated at 45 V and 2.5 A. It offers a high microstepping resolution with options from full-step to 1/256-step, controlled via jumper settings. The board features integrated low Rpgion power stages, adjustable current control, PWM current regulation with selectable decay modes, and comprehensive protections including overcurrent, undervoltage, thermal shutdown, and short-circuit protection. Ideal for applications such as 3D printers, medical equipment, robotics, and automation, it provides a reliable, space-efficient solution for evaluating and utilizing high-performance stepper motor driver technology.
STMICROELECTRONICS EVALSP820XS Stepper Motor Driver Board Specifications:
- Operating voltage: 7 V to 45 V
- Continuous current: up to 1.5 A per phase
- Maximum current: up to 2.5 A per phase
- Integrated low Rpgion power stages
- Microstep resolution: full-step to 1/256 step via jumpers
- Control interface: step and direction ports
- Adjustable current via potentiometer
- Embedded PWM current control with selectable decay modes
- Full protections: overcurrent, undervoltage lockout, thermal shutdown, short-circuit
- Size: 15 x 20 mm
- Compatible with RAMPS and open-source 3D printing solutions
- Applications include 3D printers, medical equipment, robotics, security cameras, automation, and POS systems
Buy the STMicroelectronics EVALSP820-XS – Reliable Stepper Driver for Industrial Applications
Enhance your projects with the STMicroelectronics EVALSP820-XS evaluation board. Compact and easy to use, it supports high microstepping resolutions up to 1/256, adjustable current control, and full protective features. Perfect for 3D printers, robotics, and automation systems, this board provides a reliable, space-efficient solution for integrating high-performance stepper motor control into your designs. Order online today and experience superior precision, space-saving design, and robust protections that ensure safe, efficient operation in various industrial applications.
Order your STMicroelectronics EVALSP820-XS evaluation board today and leverage advanced microstepping control for high-precision motor applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS EVALSP820XS?
You can click on the BUY or RFQ button to purchase EVALSP820XS from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part EVALSP820XS?
You can download the EVALSP820XS datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of EVALSP820XS?
STMICROELECTRONICS
