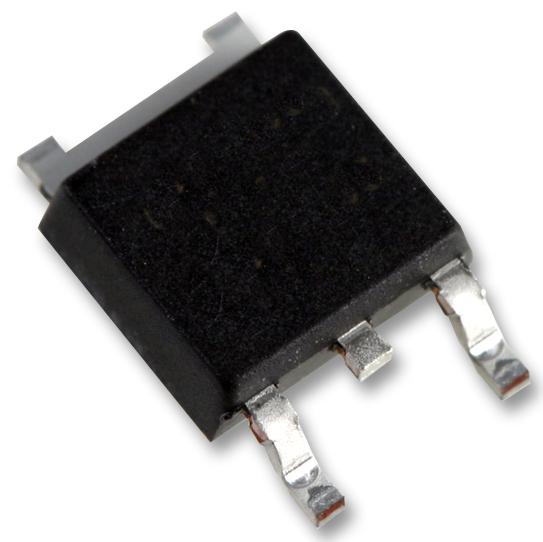

STMICROELECTRONICS STD5N60DM2 High-Voltage Power MOSFET
This high-voltage N-channel Power MOSFET is part of the MDmesh DM2 series with a 600 V rating, low on-resistance, and fast-recovery body diode, suitable for high-efficiency converters, bridge topologies, and ZVS phase-shift applications. It features extremely low gate charge, input capacitance, and high dv/dt ruggedness, making it ideal for switching power supplies, motor drives, and solar inverters. The DPAK package ensures reliable performance in demanding environments with thermal stability and robust avalanche characteristics.
STMICROELECTRONICS STD5N60DM2 High-Voltage Power MOSFET Specifications:
- Ves (Drain-Source Breakdown Voltage): 600 V
- Id (Continuous Drain Current at 25°C): 3.5 A
- Id (Continuous Drain Current at 100°C): 2 A
- Id (Pulsed Drain Current): 14 A
- Pd (Total Dissipation at 25°C): 45 W
- dV/dt (Peak Diode Recovery Voltage Slope): 40 V/µs
- dv/dt (MOSFET dv/dt Ruggedness): 40 V/µs
- Tstg (Storage Temperature Range): -55°C to 150°C
- Tj (Operating Junction Temperature Range): -55°C to 150°C
- Thermal Resistance Junction-Case: 2.78 °C/W
- Thermal Resistance Junction-Heatsink: 50 °C/W
- Avalanche Repetitive Current: 1 A
- Single Pulse Avalanche Energy: 132 mJ
- Gate Threshold Voltage (Vgs): 3 V to 5 V
- Gate Charge (Qg): 5.3 nC
- Output Capacitance (Coss): 12 pF
- Input Capacitance (Ciss): 214 pF
- Reverse Transfer Capacitance (Crss): 3.5 pF
- Package: DPAK (TO-252) type A
