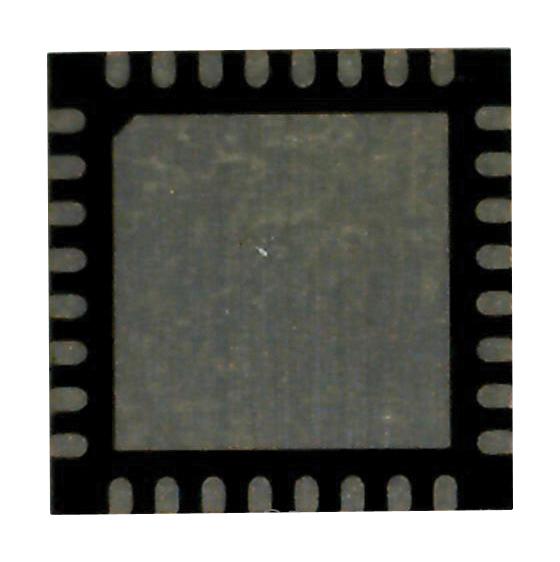

STMICROELECTRONICS L2293QTR High-Current Four Channel Driver
The L2293Q is a high-voltage, multi-channel driver capable of handling 600 mA per channel with a peak current of 1.2 A non-repetitive. Designed for driving inductive loads like relays, motors, and switching transistors, it features enable inputs, overtemperature protection, internal clamp diodes, and supports operation at frequencies up to 50 kHz. Packed in a compact VFQFPN 5x5 mm package with exposed pad for heatsinking, it is ideal for automation and switching applications requiring high current and reliability.
STMICROELECTRONICS L2293QTR High-Current Four Channel Driver Specifications:
- Output Current: 600 mA per channel
- Peak Output Current: 1.2 A (non-repetitive)
- Package Type: VFQFPN 5x5 mm with exposed pad
- Protection Features: Overtemperature, internal clamp diodes
- Frequency Range: Up to 50 kHz switching frequency
- Supply Voltage (Vs): Up to 36 V
- Logic Voltage (Vsg): 2.8 V to 36 V
- Input Voltage: Up to 7 V (logic), Enable input low at 1.5 V
- Thermal Resistance Junction-ambient: 42°C/W
- Junction Temperature Max: 150°C
- Material: Monolithic high-voltage silicon IC
- Additional features: Enable facility, LEDs, inductive load drive
Buy the STMicroelectronics L2293Q – Reliable High-Current Four Channel Driver for Industrial Applications
Purchase the STMicroelectronics L2293Q today and benefit from a high-voltage, four-channel driver designed for industrial automation, relay control, and motor switching. Its compact VFQFPN package, overtemperature protection, internal clamp diodes, and enable facility make it an ideal choice for demanding switching applications. With a peak non-repetitive current of 1.2 A per channel and operation at frequencies up to 50 kHz, this device ensures reliable performance, efficient heat sinking, and long-term durability for industrial control systems.
Get STMicroelectronics L2293Q today—built for high current, precise switching, and long-lasting durability in industrial environments.
