STMICROELECTRONICS STDRIVE601 Triple Half-Bridge Gate Driver
The STDRIVE601 is a high-voltage triple half-bridge gate driver IC designed for 3-phase motor drives and inverters. Manufactured using BCD6s technology, it features a voltage rail up to 600 V, capable of sourcing 200 mA and sinking 350 mA, with matched propagation delays ensuring synchronized operation. It includes integrated bootstrap diodes, undervoltage lockout protection, SmartSD fault protection, deadtime, and interlocking functions, making it ideal for compact, reliable power conversion and motor control applications in industrial automation.
STMICROELECTRONICS STDRIVE601 Triple Half-Bridge Gate Driver Specifications:
- Voltage rail up to 600 V
- Driver current: source 200 mA, sink 350 mA
- Propagation delay: 85 ns (all channels matched)
- Input voltage range: 3.3V to 20V TTL/CMOS compatible
- Integrated bootstrap diodes and overcurrent comparator
- VCC UVLO protection with hysteresis
- VBO UVLO hysteresis: 0.5-0.6 V
- Overcurrent fault signal on OD pin
- Deadtime and interlocking functions for cycle prevention
- Package: SO-28
- Maximum switching frequency: 800 kHz
- Operating temperature: -40°C to +125°C
- Power supply voltage: VCC 9V to 20V
- Low-side and high-side gate voltages up to 620 V bootstrap voltage
- Thermal resistance junction-to-ambient: 52°C/W
- Designed for industrial motor control, inverters, and power conversion

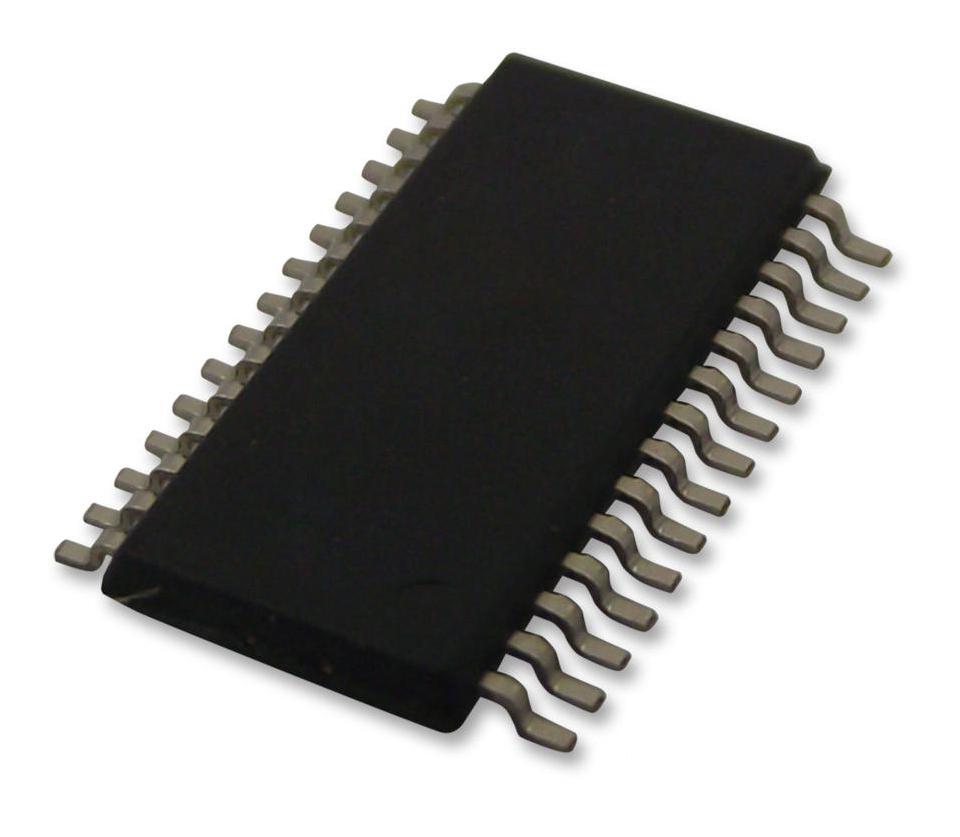

Buy the STMicroelectronics Series STDRIVE601 High-Voltage Gate Driver: STDRIVE601
Enhance your power electronics with the STDRIVE601 triple half-bridge gate driver, ideal for 3-phase motors and inverters. Featuring integrated bootstrap diodes, fault protection, and precise timing controls, it simplifies PCB design and ensures reliable operation under demanding conditions. Its high-voltage capability up to 600 V and advanced protections make it suitable for industrial automation, power conversion, and inverter systems. Purchase online today to benefit from superior performance, compact size, and robust features tailored for efficient, safe, and high-performance motor drives.
Buy STMicroelectronics STDRIVE601 high-voltage gate driver now and experience unmatched reliability and performance in motor control applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STDRIVE601?
You can click on the BUY or RFQ button to purchase STDRIVE601 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STDRIVE601?
You can download the STDRIVE601 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STDRIVE601?
STMICROELECTRONICS
