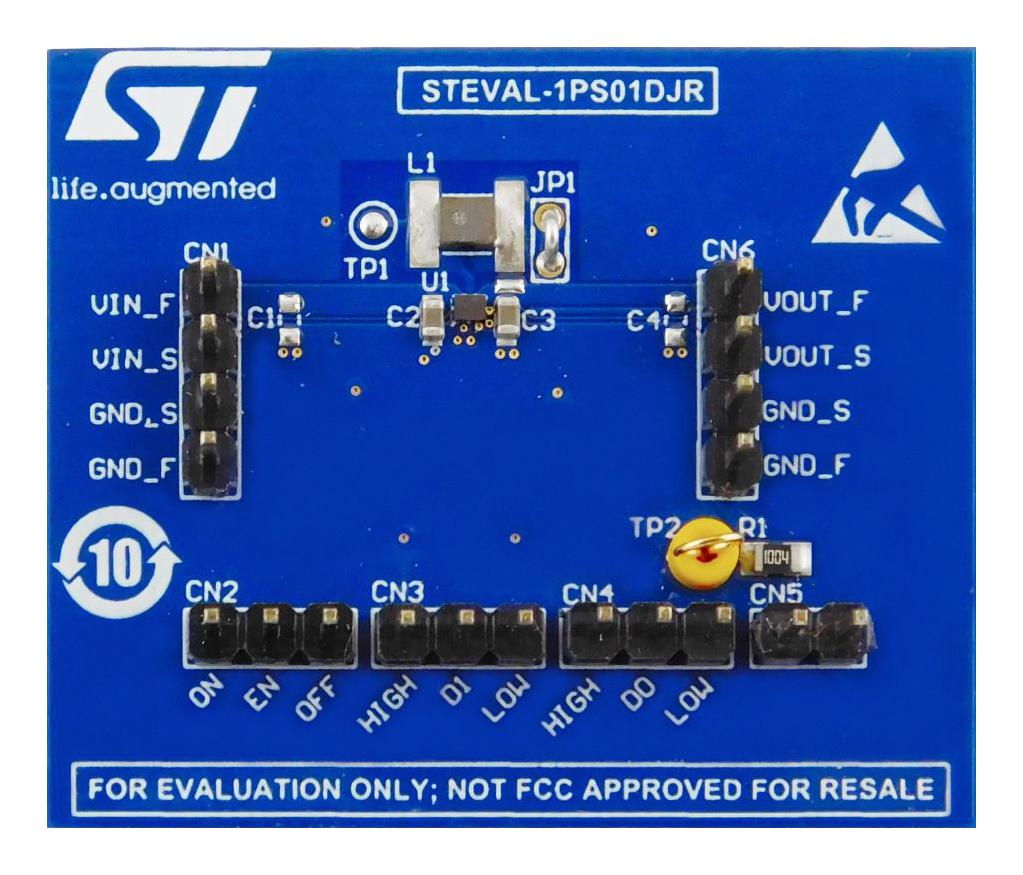

STMICROELECTRONICS STEVAL1PS01DJR Nano Power Converter
The STEVAL-1PS01DJR evaluation board features the ST1PS01 nano-quiescent, synchronous step-down converter designed for high-efficiency, compact applications. It provides up to 400 mA output current, supporting input voltages from 1.8 V to 5.5 V. The board allows dynamic output voltage adjustment from 1.8 V to 2.8 V via digital controls, featuring enhanced peak current control for high efficiency with minimal external components. Ideal for wearable devices, personal monitors, and low-power wireless sensors, it ensures reliable performance in compact, portable designs.
STMICROELECTRONICS STEVAL1PS01DJR Nano Power Converter Specifications:
- Input Voltage Range: 1.8 V to 5.5 V
- Output Current Capability: Up to 400 mA
- Output Voltage: Adjustable from 1.8 V to 2.8 V via digital controls
- Inductor: Typical 2.2 μH
- External Capacitors: Tiny, low-loss for high efficiency
- Peak Current Control: Enhanced PCC for minimal power loss
- Quiescent Current: Minimized for energy efficiency
- Suitable for wearable, wireless sensors, portable devices, energy harvesting applications
- RoHS and WEEE compliant hardware
- Board Size: Compact for space-constrained designs
Buy the STMicroelectronics Series Nano-Quiescent Step-Down Converter: STEVAL1PS01DJR
Enhance your portable device design with the Nano Power Converter evaluation board. Featuring high efficiency, a small footprint, and adjustable output, it’s ideal for wearables, wireless sensors, and energy harvesting applications. This compact board provides up to 400 mA current, supports input voltages from 1.8 V to 5.5 V, and includes digital voltage selection and power good indicators. Ensure reliable, low-power operation in your applications with this advanced, easy-to-use power conversion solution from STMicroelectronics.
Order your STMicroelectronics Series STEVAL-1PS01DJR evaluation board today and achieve efficient power management for your portable projects.
