STMICROELECTRONICS STEVALIDB008V2 Bluetooth Evaluation Kit

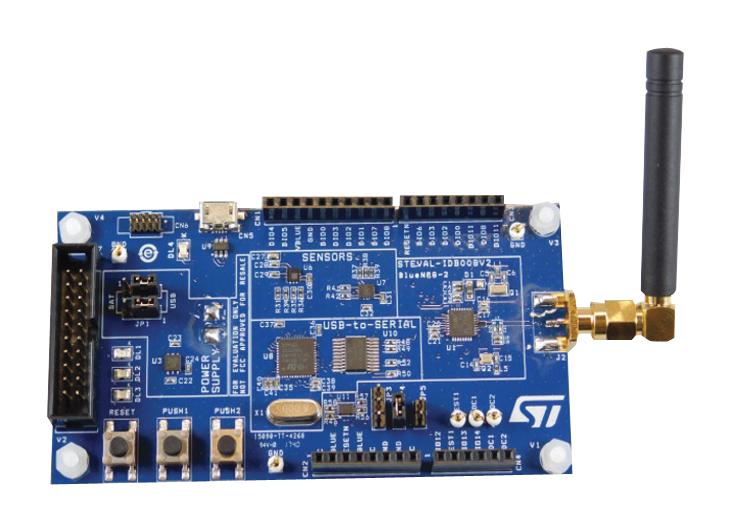

The STEVAL-IDB008V2 is a versatile Bluetooth low energy evaluation platform based on the BlueNRG-2 system-on-chip, featuring 256 KB Flash and 24 KB RAM. It supports Bluetooth SMART v5.0, including master, slave, and simultaneous roles, with extended data length capabilities. The kit offers robust hardware resources like sensors, buttons, LEDs, and USB communication, allowing diverse application development such as remote control, sensor data acquisition, and debugging. Its power options include USB, battery, and external supply, making it ideal for comprehensive IoT project prototyping and testing.
STMICROELECTRONICS STEVALIDB008V2 Bluetooth Evaluation Kit Specifications:
- Bluetooth® SMART v5.0 compliance with extended data length support
- Bluetooth® low energy system on chip BlueNRG-2
- 256 KB Flash memory, 24 KB RAM
- Up to +8 dBm output power at antenna connector
- Receiver sensitivity of -88 dBm
- Low power consumption: 7.7 mA in RX mode, 8.2 mA at +0 dBm
- Integrated balun BALF-NRG-02D3 for matching network and harmonics filtering
- Includes sensors: accelerometer, pressure sensor with temperature sensor
- USB virtual COM interface for debugging and communication
- 3 user LEDs, 2 user buttons
- SMA connector for antenna or measuring equipment
- Supports multiple power sources: USB, battery, external power supply
- RoHS compliant
- Dimensions and physical interface as per schematic design
Buy the STMicroelectronics BlueNRG-2 U– Reliable Bluetooth Low Energy Evaluation Platform for Industrial Applications
Purchase the Bluetooth Evaluation Kit online today to accelerate your IoT development projects. Featuring BlueNRG-2 chip with Bluetooth SMART v5.0 support, sensors, LEDs, buttons, and multiple power options, this platform is ideal for prototyping and testing diverse applications. Its integrated components enable remote control, sensor data collection, and seamless communication with USB virtual COM. Designed for developers seeking reliable, low-power wireless systems, this kit offers comprehensive hardware and software resources, ensuring efficient development cycles and enhanced project performance.
Get STMicroelectronics STEVAL-IDB008V2 today—built for comprehensive IoT device development and flexible testing with versatile power options.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS STEVALIDB008V2?
You can click on the BUY or RFQ button to purchase STEVALIDB008V2 from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part STEVALIDB008V2?
You can download the STEVALIDB008V2 datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of STEVALIDB008V2?
STMICROELECTRONICS
