STMICROELECTRONICS TS924AIYDT Quad Operational Amplifier
The TS924 and TS924A are rail-to-rail quad operational amplifiers designed for both 3 V and 5 V operation, offering high output current (80 mA) for driving low impedance loads. They feature low noise (9 nV/√Hz), low distortion, low offset voltage (900 μV max for TS924A), and high-speed performance (4 MHz bandwidth, 1.3 V/μs slew rate). Ideal for audio systems, line drivers, buffers, headphone amplifiers, and multimedia applications, they are stabilized for capacitive loads up to 500 pF and suitable for battery-powered environments.
STMICROELECTRONICS TS924AIYDT Quad Operational Amplifier Specifications:
- Supply Voltage Range: 2.7 V to 12 V
- Output Current Capability: 80 mA
- Input Offset Voltage: 900 μV max (TS924A)
- Input Offset Voltage Drift: 2 μV/°C
- Input Bias Current: 15 to 100 nA
- Voltage Gain: Up to 200 V/mV (at R=10kΩ)
- High Output Voltage: 2.87–2.90 V (R=10kΩ)
- Low Output Voltage: 50–180 mV (R=10kΩ)
- Gain Bandwidth Product: 4 MHz
- Slew Rate: 1.3 V/μs
- Total Harmonic Distortion: 0.005%
- Channel Separation: 120 dB
- ESD Protection: 3 kV (human body model), 1.5 kV (charged device model)
- Operating Temperature Range: -40°C to +125°C
- Package Types: SO14, TSSOP14

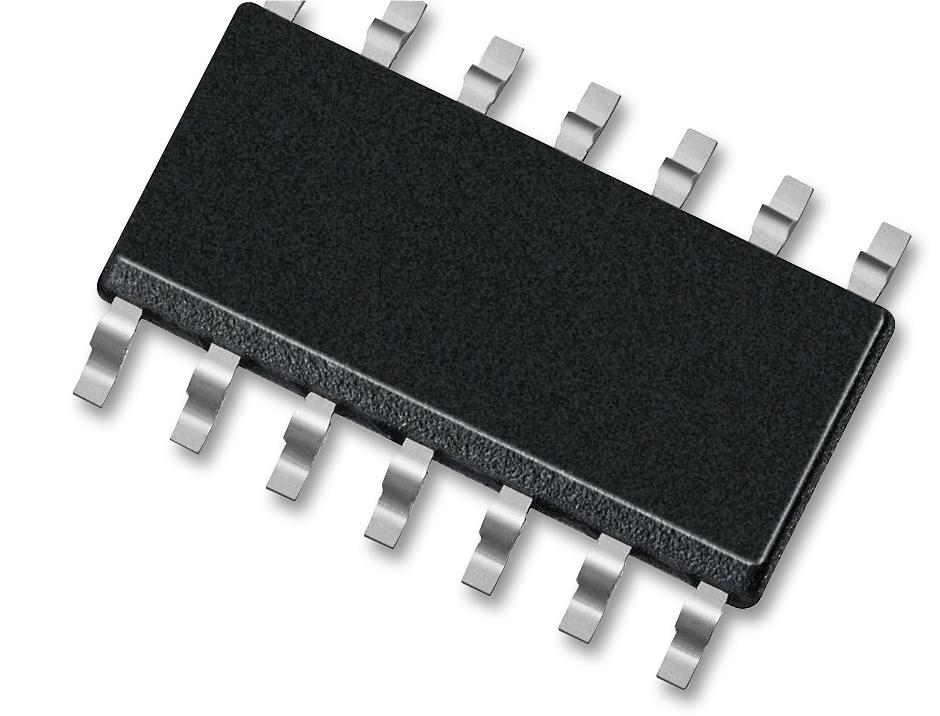

Buy the STMicroelectronics TS924A – Reliable Quad Operational Amplifier for Industrial Applications
Experience superior performance with the STMicroelectronics TS924A quad operational amplifier, engineered for low noise, high output current, and wide voltage range. It provides exceptional stability for audio systems, buffers, and line drivers, with a low offset voltage of up to 900 μV and a bandwidth of 4 MHz. Its rail-to-rail input and output features ensure versatile integration into low-voltage designs, making it ideal for battery-powered and portable electronics, all available to purchase online for quick delivery and reliable operation.
Order your STMicroelectronics TS924A quad operational amplifier today and give your audio and low-voltage projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS TS924AIYDT?
You can click on the BUY or RFQ button to purchase TS924AIYDT from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TS924AIYDT?
You can download the TS924AIYDT datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of TS924AIYDT?
STMICROELECTRONICS
