STMICROELECTRONICS STEVALILL080V1 LED Driver Module

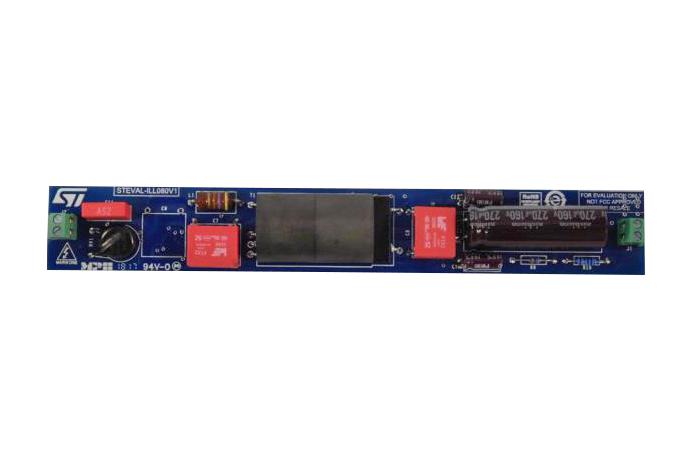

The STEVAL-ILLO80V1 is an 18 W LED driver designed for tubular replacements like fluorescent lamps. It provides a ripple-free 200 mA output current to LED strings between 75 and 93 V, ensuring high efficiency (>85%), low total harmonic distortion (<20%), and excellent power factor. The board employs a high power factor, non-isolated SEPIC topology with a quasi-resonant flyback controller, managing input voltage variations, overvoltage, and low voltage conditions. Its compact form factor is suitable for rounded enclosures, offering reliable, long-lasting operation in sealed environments, with short circuit protection and RoHS compliance.
STMICROELECTRONICS STEVALILL080V1 LED Driver Module Specifications:
- Input voltage: 180 - 264 Vrms
- Output current: 200 mA
- LED string voltage: 83 V + 10%
- No load output voltage: 110 V
- Full load efficiency: > 85%
- Output current ripple: < 1%
- Power factor: High
- Total Harmonic Distortion: < 20%
- No-load power: better than 300 mW at 230 Vin
- Operating frequency: 45-66Hz
- Protection: Short circuit with auto restart
- RoHS compliant
- Form factor suitable for rounded enclosures
- Application: LED tube replacement, sealed environments
- Protection: manages overvoltage, undervoltage, and input variations
Buy the Buy STMicroelectronics LED Driver Part Number STEVALILLO80V1 Online
Order the STMicroelectronics LED Driver STEVAL-ILLO80V1 online now to ensure high efficiency, ripple-free output, and robust protection features. This compact, high power factor power supply is perfect for replacing fluorescent tube lights in sealed environments, offering a reliable and long-lasting solution with high efficiency of over 85%. Its design manages input variations and protects against overvoltage and short circuits, making it ideal for industrial, commercial, or retrofit lighting projects. Buy today for a durable, energy-efficient lighting upgrade.
Get STMicroelectronics LED Driver STEVAL-ILLO80V1 today—designed for high efficiency and reliable LED tube replacement solutions.
